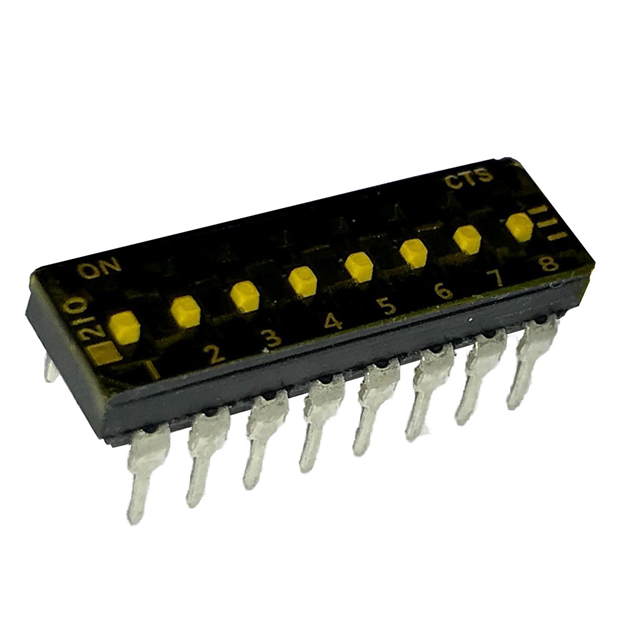

CTS Electrocomponents 210-8MSTFD
Images are for reference only
Manufacturer
Manufacturer No
210-8MSTFD
Availability
In Stock
Packaging
Tube
Description
SWITCH SLIDE DIP SPST 0.1A 20V
Detailed Description
Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 100mA 20VDC
Datasheet
Payment
Delivery
Pitch
0.100" (2.54mm), Full
Length
0.858" (21.80mm)
Series
210
Circuit
SPST
Features
Epoxy Sealed Terminals, Tape Seal
Washable
Yes
Packaging
Tube
Manufacturer
CTS Electrocomponents
Actuator Type
Slide (Standard)
Body Material
-
Mounting Type
Through Hole
Actuator Level
Raised
Contact Finish
Gold
Voltage Rating
20VDC
Electrical Life
1,000 Cycles
Mechanical Life
-
Contact Material
Beryllium Copper
Termination Style
PC Pin
Height Above Board
0.190" (4.83mm)
Number of Positions
8
Current Rating (Amps)
100mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.858" (21.80mm) |
| Series | 210 |
| Circuit | SPST |
| Features | Epoxy Sealed Terminals, Tape Seal |
| Washable | Yes |
| Packaging | Tube |
| Manufacturer | CTS Electrocomponents |
| Actuator Type | Slide (Standard) |
| Body Material | - |
| Mounting Type | Through Hole |
| Actuator Level | Raised |
| Contact Finish | Gold |
| Voltage Rating | 20VDC |
| Electrical Life | 1,000 Cycles |
| Mechanical Life | - |
| Contact Material | Beryllium Copper |
| Termination Style | PC Pin |
| Height Above Board | 0.190" (4.83mm) |
| Number of Positions | 8 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -40°C ~ 85°C |
