Step1: Product

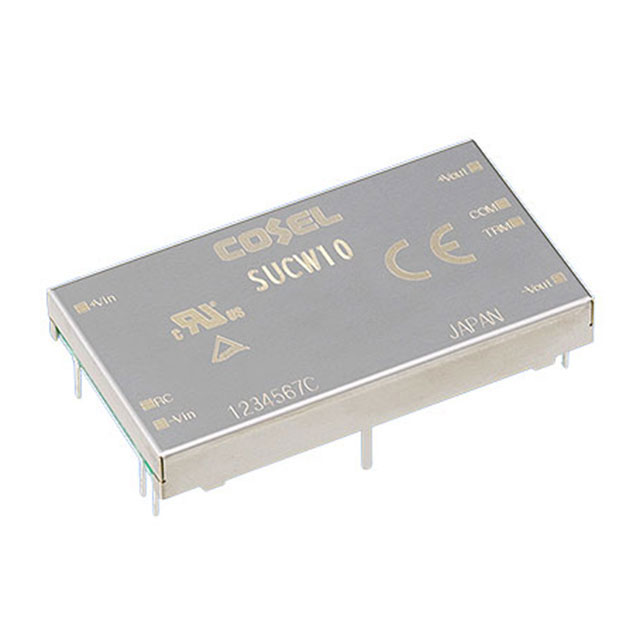

Cosel USA, Inc. SUCW102412C
Images are for reference only
Manufacturer
Manufacturer No
SUCW102412C
Quantity
3
Availability
In Stock
Package
7-DIP Module
Packaging
Tray
Description
DC DC CONVERTER +/-12V
Detailed Description
Isolated Module DC DC Converter 2 Output 12V -12V 450mA, 450mA 18V - 36V Input
Datasheet
Payment
Delivery
Mfr
Cosel USA, Inc.
Type
Isolated Module
Series
SUCW (10W)
Features
Remote On/Off, OCP
Packaging
Tray
Efficiency
86%
Applications
ITE (Commercial)
Mounting Type
Through Hole
Package / Case
7-DIP Module
Size / Dimension
1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm)
Number of Outputs
2
Voltage - Output 1
12V
Voltage - Output 2
-12V
Voltage - Output 3
-
Base Product Number
SUCW102412
Voltage - Isolation
500 V
Operating Temperature
-40°C ~ 85°C (With Derating)
Voltage - Input (Max)
36V
Voltage - Input (Min)
18V
Current - Output (Max)
450mA, 450mA
Supplier Device Package
-
| Attribute | Value |
|---|---|
| Mfr | Cosel USA, Inc. |
| Type | Isolated Module |
| Series | SUCW (10W) |
| Features | Remote On/Off, OCP |
| Packaging | Tray |
| Efficiency | 86% |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm) |
| Number of Outputs | 2 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Base Product Number | SUCW102412 |
| Voltage - Isolation | 500 V |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 18V |
| Current - Output (Max) | 450mA, 450mA |
| Supplier Device Package | - |
