Step1: Product

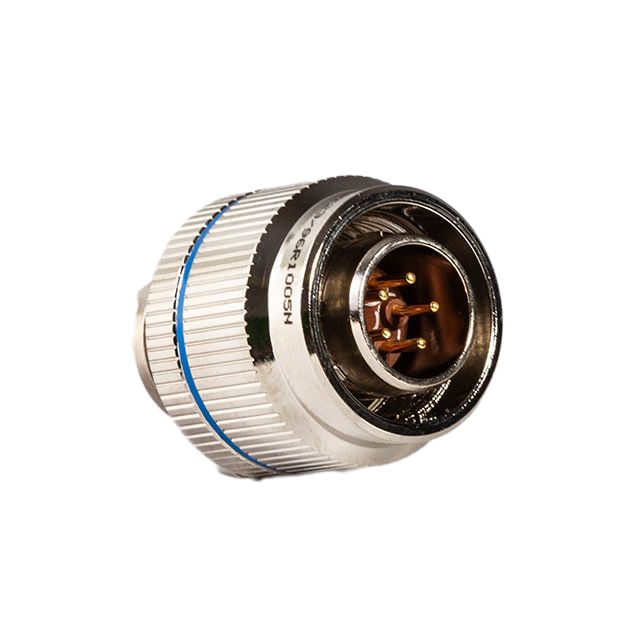

Conesys M83723/75R1212N
Images are for reference only
Manufacturer
Manufacturer No
M83723/75R1212N
Quantity
3
Availability
In Stock
Packaging
Box
Description
CONN PLUG FMALE 12POS CRIMP
Detailed Description
12 (Power) Position Circular Connector Plug, Female Sockets Crimp
Datasheet
Payment
Delivery
Mfr
Conesys
Color
Silver
Series
Military, MIL-DTL-83723 Series III
Features
Coupling Nut
Packaging
Box
Shielding
Unshielded
Orientation
N (Normal)
Termination
Crimp
Applications
Automotive, Military
Shell Finish
Electroless Nickel
Cable Opening
-
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Voltage Rating
-
Insert Material
-
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
Metal
Ingress Protection
Environment Resistant
Base Product Number
M83723/75
Number of Positions
12 (Power)
Shell Size - Insert
12-12
Current Rating (Amps)
7.5A
Operating Temperature
-65°C ~ 200°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Conesys |
| Color | Silver |
| Series | Military, MIL-DTL-83723 Series III |
| Features | Coupling Nut |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Crimp |
| Applications | Automotive, Military |
| Shell Finish | Electroless Nickel |
| Cable Opening | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Voltage Rating | - |
| Insert Material | - |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Base Product Number | M83723/75 |
| Number of Positions | 12 (Power) |
| Shell Size - Insert | 12-12 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -65°C ~ 200°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
