Step1: Product

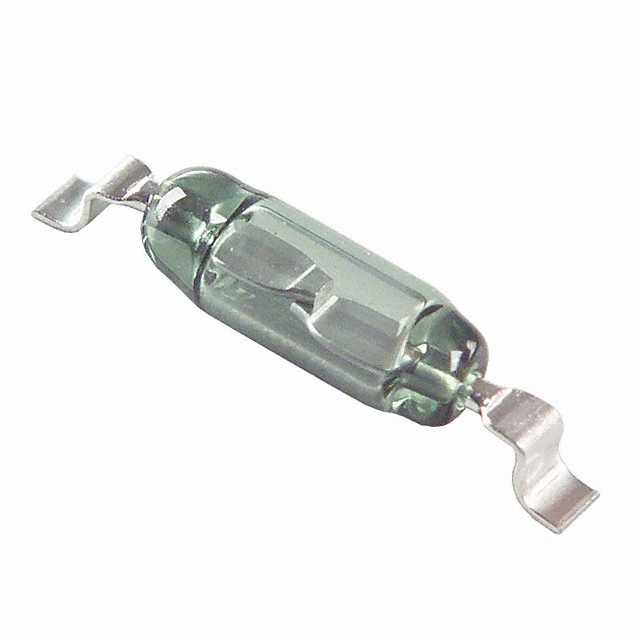

Comus International RI-80SMD0515-G2
Images are for reference only
Manufacturer
Manufacturer No
RI-80SMD0515-G2
Packaging
Tape & Reel (TR)
Description
SWITCH REED SPST-NO 250MA 140V
Detailed Description
Glass Body Reed Switch SPST-NO 5 ~ 15AT Operate Range 5W 250mA (AC), 350mA (DC) 140 V Surface Mount
Datasheet
Payment
Delivery
Type
Glass Body Reed
Series
RI-80
Circuit
SPST-NO
Packaging
Tape & Reel (TR)
Capacitance
0.45 pF
Size - Body
0.071" Dia x 0.197" L (1.80mm x 5.00mm)
Manufacturer
Comus International
Operate Time
0.35 ms
Release Time
0.02 ms
Mounting Type
Surface Mount
Operate Range
5 ~ 15AT
Power - Rated
5W
Release Range
2 ~ 13AT
Current - Carry
500mA (AC/DC)
Length - Overall
0.400" (10.16mm)
Termination Style
Gull Wing
Height Above Board
0.076" (1.92mm)
Current - Switching
250mA (AC), 350mA (DC)
Operating Temperature
-55°C ~ 125°C
Voltage - Switching AC
140 V
Voltage - Switching DC
175 V
| Attribute | Value |
|---|---|
| Type | Glass Body Reed |
| Series | RI-80 |
| Circuit | SPST-NO |
| Packaging | Tape & Reel (TR) |
| Capacitance | 0.45 pF |
| Size - Body | 0.071" Dia x 0.197" L (1.80mm x 5.00mm) |
| Manufacturer | Comus International |
| Operate Time | 0.35 ms |
| Release Time | 0.02 ms |
| Mounting Type | Surface Mount |
| Operate Range | 5 ~ 15AT |
| Power - Rated | 5W |
| Release Range | 2 ~ 13AT |
| Current - Carry | 500mA (AC/DC) |
| Length - Overall | 0.400" (10.16mm) |
| Termination Style | Gull Wing |
| Height Above Board | 0.076" (1.92mm) |
| Current - Switching | 250mA (AC), 350mA (DC) |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Switching AC | 140 V |
| Voltage - Switching DC | 175 V |
