Step1: Product

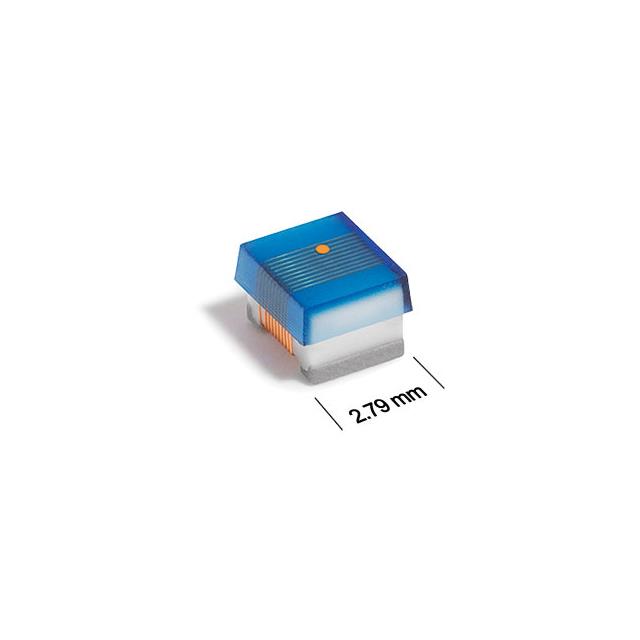

Coilcraft 1008CS-152XGRC
Images are for reference only
Manufacturer
Manufacturer No
1008CS-152XGRC
Quantity
85
Availability
In Stock
Package
1008 (2520 Metric)
Packaging
Bulk
Description
FIXED IND 1.5UH 330MA 2.3 OHM
Detailed Description
1.5 µH Unshielded Wirewound Inductor 330 mA 2.3Ohm Max 1008 (2520 Metric)
Datasheet
Payment
Delivery
Mfr
Coilcraft
Type
Wirewound
Series
1008CS
Ratings
AEC-Q200
Features
-
Q @ Freq
28 @ 50MHz
Packaging
Bulk
Shielding
Unshielded
Tolerance
±2%
Inductance
1.5 µH
Mounting Type
Surface Mount
Package / Case
1008 (2520 Metric)
Material - Core
Ceramic
Size / Dimension
0.115" L x 0.110" W (2.92mm x 2.79mm)
DC Resistance (DCR)
2.3Ohm Max
Current Rating (Amps)
330 mA
Height - Seated (Max)
0.080" (2.03mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
1008
Frequency - Self Resonant
200MHz
Current - Saturation (Isat)
-
Inductance Frequency - Test
7.9 MHz
| Attribute | Value |
|---|---|
| Mfr | Coilcraft |
| Type | Wirewound |
| Series | 1008CS |
| Ratings | AEC-Q200 |
| Features | - |
| Q @ Freq | 28 @ 50MHz |
| Packaging | Bulk |
| Shielding | Unshielded |
| Tolerance | ±2% |
| Inductance | 1.5 µH |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| DC Resistance (DCR) | 2.3Ohm Max |
| Current Rating (Amps) | 330 mA |
| Height - Seated (Max) | 0.080" (2.03mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 1008 |
| Frequency - Self Resonant | 200MHz |
| Current - Saturation (Isat) | - |
| Inductance Frequency - Test | 7.9 MHz |
