Step1: Product
CODACA CPD2320-220M

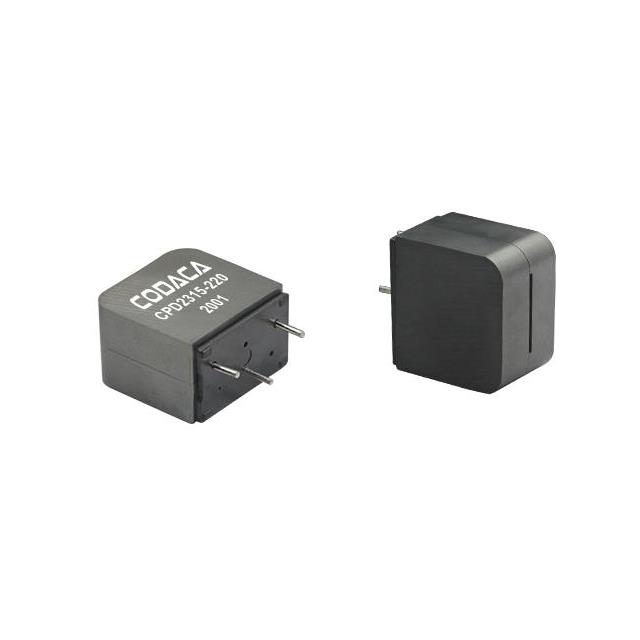

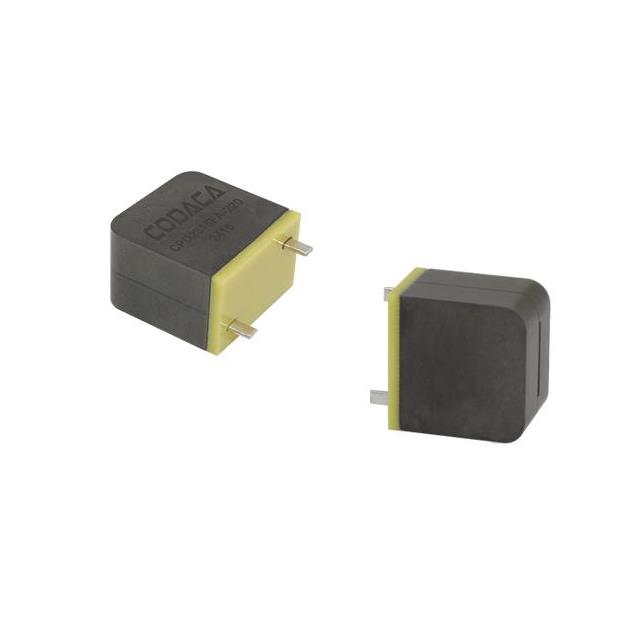

Images are for reference only
Manufacturer
Manufacturer No
CPD2320-220M
Package
Vertical, 4 PC Pin
Packaging
Tray
Description
FIXED IND 22UH 14A 9.3 MOHM TH
Detailed Description
22 µH Shielded Wirewound Inductor 14 A 9.3mOhm Max Vertical, 4 PC Pin Low Loss, Soft Saturation
Datasheet
Payment
Delivery
Mfr
CODACA
Type
Wirewound
Series
CPD2320
Ratings
-
Features
Low Loss, Soft Saturation
Q @ Freq
-
Packaging
Tray
Shielding
Shielded
Tolerance
±20%
Inductance
22 µH
Mounting Type
Through Hole
Package / Case
Vertical, 4 PC Pin
Material - Core
Ferrite
Size / Dimension
0.906" L x 0.787" W (23.00mm x 20.00mm)
DC Resistance (DCR)
9.3mOhm Max
Current Rating (Amps)
14 A
Height - Seated (Max)
0.906" (23.00mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
-
Frequency - Self Resonant
-
Current - Saturation (Isat)
21A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | CODACA |
| Type | Wirewound |
| Series | CPD2320 |
| Ratings | - |
| Features | Low Loss, Soft Saturation |
| Q @ Freq | - |
| Packaging | Tray |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 22 µH |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Material - Core | Ferrite |
| Size / Dimension | 0.906" L x 0.787" W (23.00mm x 20.00mm) |
| DC Resistance (DCR) | 9.3mOhm Max |
| Current Rating (Amps) | 14 A |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | - |
| Current - Saturation (Isat) | 21A |
| Inductance Frequency - Test | 100 kHz |
