Step1: Product

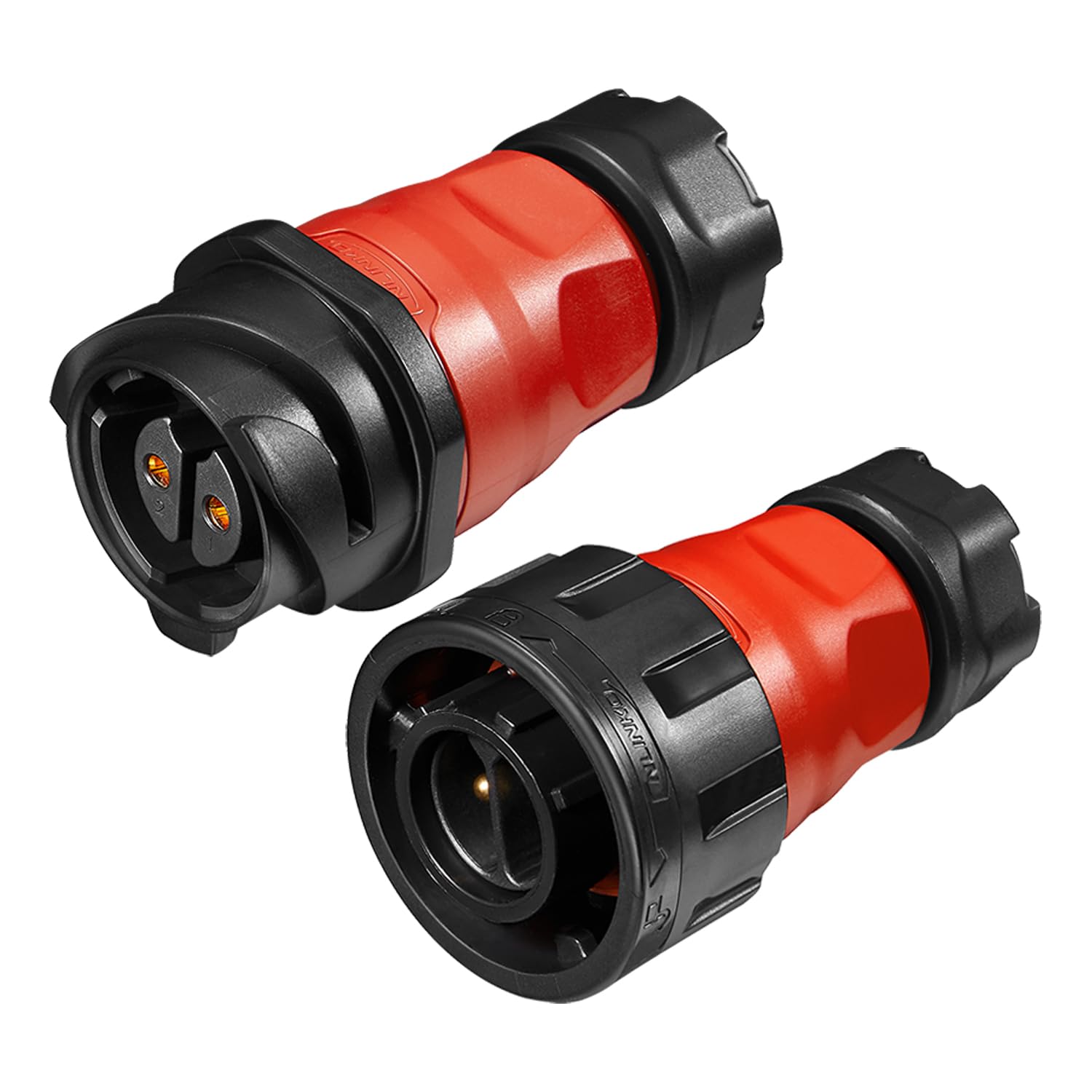

Cnlinko YM-24-C02PE-02-001/YM-24-J02PP-02-001
Images are for reference only
Manufacturer
Manufacturer No
YM-24-C02PE-02-001/YM-24-J02PP-02-001
Packaging
Case
Description
YM24 2P Plug Mating Target
Detailed Description
2 (Power) Position Circular Connector Plug, Mating Target Solder
Payment
Delivery
Mfr
Cnlinko
Grade
-
Series
YM
Packaging
Case
Shielding
Unshielded
Termination
Solder
Applications
Industrial, Instrumentation, Medical, Testing Equipment & Measurement, Telecommunications
Cable Opening
0.433" ~ 0.512" (11.00mm ~ 13.00mm)
Mounting Type
Free Hanging (In-Line)
Qualification
-
Connector Type
Plug, Mating Target
Fastening Type
Bayonet
Shell Material
Polybutylene Terephthalate (PBT)
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
Plastic
Ingress Protection
IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Number of Positions
2 (Power)
Current Rating (Amps)
25A
Operating Temperature
-40°C ~ 120°C
Contact Finish - Mating
Copper Alloy
Contact Finish Thickness - Mating
157.5µin (4.00µm)
| Attribute | Value |
|---|---|
| Mfr | Cnlinko |
| Grade | - |
| Series | YM |
| Packaging | Case |
| Shielding | Unshielded |
| Termination | Solder |
| Applications | Industrial, Instrumentation, Medical, Testing Equipment & Measurement, Telecommunications |
| Cable Opening | 0.433" ~ 0.512" (11.00mm ~ 13.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Qualification | - |
| Connector Type | Plug, Mating Target |
| Fastening Type | Bayonet |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | Plastic |
| Ingress Protection | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 2 (Power) |
| Current Rating (Amps) | 25A |
| Operating Temperature | -40°C ~ 120°C |
| Contact Finish - Mating | Copper Alloy |
| Contact Finish Thickness - Mating | 157.5µin (4.00µm) |
