Step1: Product
CNC Tech 51025-09-0100-01

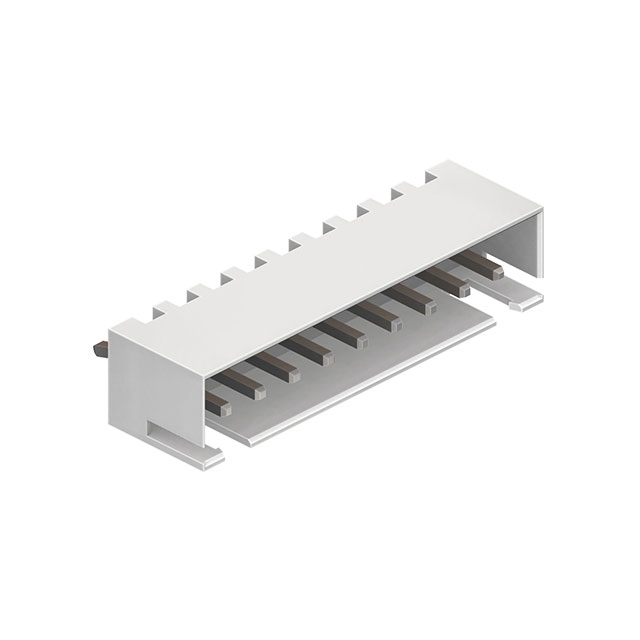

Images are for reference only
Manufacturer
Manufacturer No
51025-09-0100-01
Availability
In Stock
Packaging
Bag
Description
WIRE-TO BOARD WAFER, 2.5MM, 9 CO
Detailed Description
Connector Header Through Hole 9 position 0.098" (2.50mm)
Datasheet
Payment
Delivery
Mfr
CNC Tech
Style
Board to Cable/Wire
Series
-
Features
-
Packaging
Bag
Shrouding
Shrouded - 4 Wall
Termination
Kinked Pin, Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.098" (2.50mm)
Voltage Rating
250V
Contact Material
Brass
Insulation Color
White
Insulation Height
0.276" (7.00mm)
Ingress Protection
-
Base Product Number
51025
Insulation Material
Polyamide (PA66), Nylon 6/6
Number of Positions
9
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
0.134" (3.40mm)
Current Rating (Amps)
3A
Operating Temperature
-25°C ~ 85°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | CNC Tech |
| Style | Board to Cable/Wire |
| Series | - |
| Features | - |
| Packaging | Bag |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.098" (2.50mm) |
| Voltage Rating | 250V |
| Contact Material | Brass |
| Insulation Color | White |
| Insulation Height | 0.276" (7.00mm) |
| Ingress Protection | - |
| Base Product Number | 51025 |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 9 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.134" (3.40mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -25°C ~ 85°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
