CNC Tech 3521-14-0200-99
Images are for reference only
Manufacturer
Manufacturer No
3521-14-0200-99
Availability
In Stock
Packaging
Tube
Description

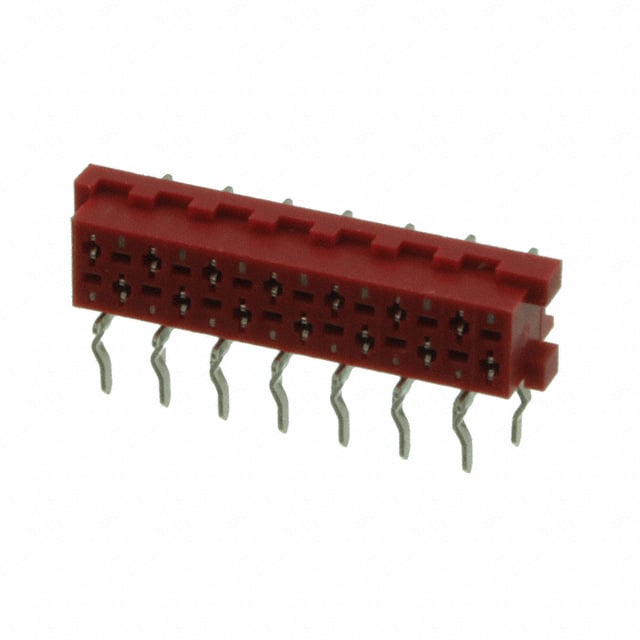

CONN RCPT 14POS 0.1 TIN PCB R/A
Detailed Description
14 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
Datasheet
Payment
Delivery
Mfr
CNC Tech
Style
Board to Board or Cable
Series
-
Features
-
Packaging
Tube
Termination
Kinked Pin, Solder
Applications
-
Contact Type
Forked
Contact Shape
-
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
500V
Contact Material
Bronze
Insulation Color
Red
Insulation Height
0.197" (5.00mm)
Ingress Protection
-
Base Product Number
3521
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
14
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
0.122" (3.10mm)
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | CNC Tech |
| Style | Board to Board or Cable |
| Series | - |
| Features | - |
| Packaging | Tube |
| Termination | Kinked Pin, Solder |
| Applications | - |
| Contact Type | Forked |
| Contact Shape | - |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 500V |
| Contact Material | Bronze |
| Insulation Color | Red |
| Insulation Height | 0.197" (5.00mm) |
| Ingress Protection | - |
| Base Product Number | 3521 |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 14 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.122" (3.10mm) |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
