Step1: Product

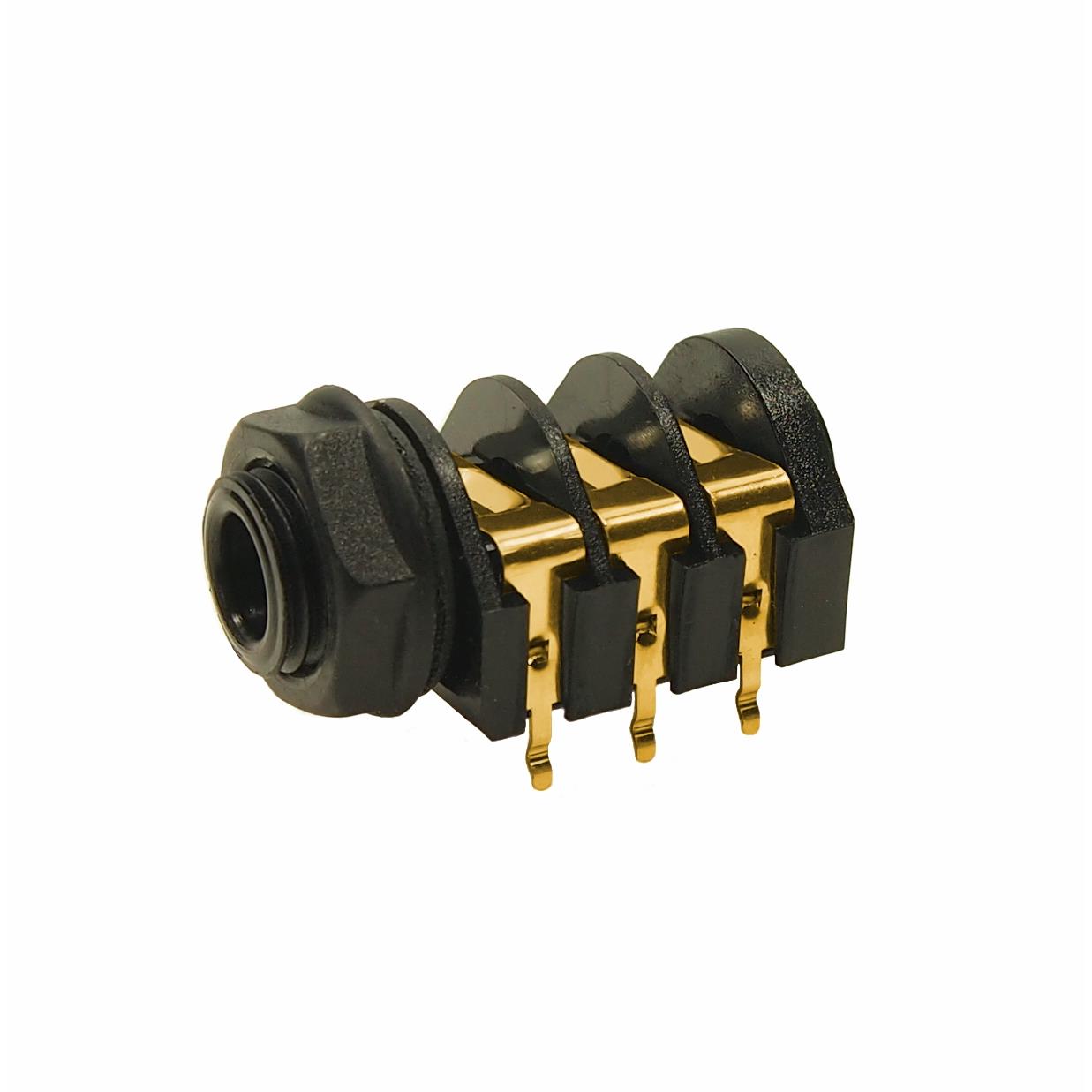

CLIFF Electronic Components Ltd CL1227G
Images are for reference only
Manufacturer
Manufacturer No
CL1227G
Packaging
Bag
Description
J/SKT S2A/BBB/PC-C KINK GOLD
Detailed Description
6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin
Datasheet
Payment
Delivery
Mfr
CLIFF Electronic Components Ltd
Grade
-
Gender
Female
Series
S2
Features
Mounting Hardware, Thread Lock
Includes
-
Packaging
Bag
Shielding
Unshielded
Body Color
Black
Termination
Kinked Pin
Thread Size
7/16"-20
Signal Lines
Stereo (3 Conductor, TRS)
Body Material
-
Cable Opening
-
Mounting Type
Panel Mount, Through Hole, Right Angle
Qualification
-
Connector Type
Phone Jack
Actual Diameter
0.252" (6.40mm)
Panel Hole Size
-
Voltage - Rated
-
Contact Material
-
Housing Material
Polyamide (PA), Nylon
Insulation Color
-
Internal Switch(s)
Three Switches
Mating Length/Depth
-
Current Rating (Amps)
5 A
Operating Temperature
-10°C ~ 70°C
Contact Material - Plating
Gold
Number of Positions/Contacts
3 Conductors, 6 Contacts
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
| Attribute | Value |
|---|---|
| Mfr | CLIFF Electronic Components Ltd |
| Grade | - |
| Gender | Female |
| Series | S2 |
| Features | Mounting Hardware, Thread Lock |
| Includes | - |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | Black |
| Termination | Kinked Pin |
| Thread Size | 7/16"-20 |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Body Material | - |
| Cable Opening | - |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Qualification | - |
| Connector Type | Phone Jack |
| Actual Diameter | 0.252" (6.40mm) |
| Panel Hole Size | - |
| Voltage - Rated | - |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Color | - |
| Internal Switch(s) | Three Switches |
| Mating Length/Depth | - |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -10°C ~ 70°C |
| Contact Material - Plating | Gold |
| Number of Positions/Contacts | 3 Conductors, 6 Contacts |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
