Step1: Product

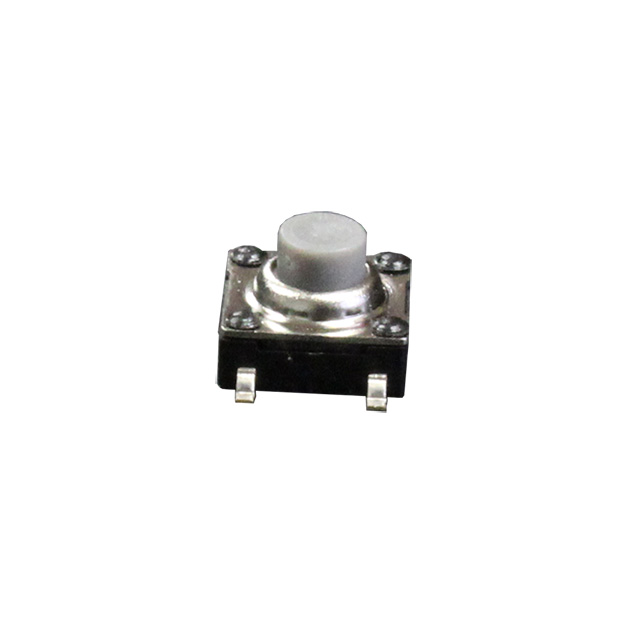

CIT Relay and Switch STS4.3LF260QG
Images are for reference only
Manufacturer
Manufacturer No
STS4.3LF260QG
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SWITCH TACTILE SPST-NO 0.05A 48V
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
Payment
Delivery
Mfr
CIT Relay and Switch
Series
STS
Circuit
SPST-NO
Outline
10.00mm x 7.20mm
Features
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Surface Mount
Switch Travel
0.45mm
Mechanical Life
-
Operating Force
260gf
Switch Function
Off-Mom
Actuator Material
Polyamide (PA6T), Nylon 6T
Termination Style
Gull Wing
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
STS4.3
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 48VDC
Illumination Type, Color
-
Actuator Length, Right Angle
-
Illumination Voltage (Nominal)
-
Actuator Height off PCB, Vertical
4.30mm
| Attribute | Value |
|---|---|
| Mfr | CIT Relay and Switch |
| Series | STS |
| Circuit | SPST-NO |
| Outline | 10.00mm x 7.20mm |
| Features | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Switch Travel | 0.45mm |
| Mechanical Life | - |
| Operating Force | 260gf |
| Switch Function | Off-Mom |
| Actuator Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Gull Wing |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | STS4.3 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 48VDC |
| Illumination Type, Color | - |
| Actuator Length, Right Angle | - |
| Illumination Voltage (Nominal) | - |
| Actuator Height off PCB, Vertical | 4.30mm |
