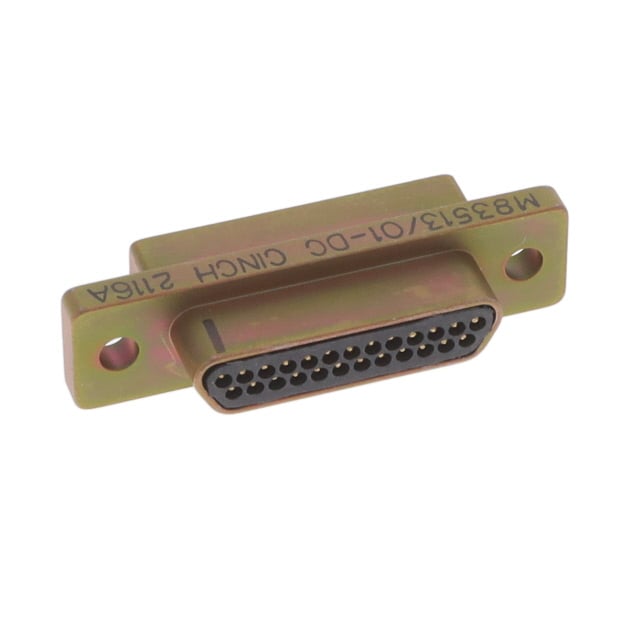

Cinch Connectivity Solutions M83513/16-D01NP
Images are for reference only
Manufacturer
Manufacturer No
M83513/16-D01NP
Availability
In Stock
Packaging
Bag
Description
CONN MICRO-D PLUG 25POS R/A SLDR
Detailed Description
25 Position D-Type, Micro-D Plug, Male Pins Connector
Datasheet
Payment
Delivery
Mfr
Cinch Connectivity Solutions
Color
-
Series
Military, MIL-C-83513, M83513
Features
-
Packaging
Bag
Wire Gauge
-
Termination
Solder
Contact Form
-
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (2-56)
Number of Rows
2
Voltage Rating
-
Backset Spacing
0.275" (6.99mm)
Connector Style
D-Type, Micro-D
Contact Material
Copper Alloy
Ingress Protection
-
Base Product Number
M83513/16
Dielectric Material
Polyester, Glass Filled
Number of Positions
25
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Aluminum Alloy, Nickel Plated, Electroless
Contact Finish Thickness
50.0µin (1.27µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
0.050 Pitch x 0.050 Row to Row
