Step1: Product
Cinch Connectivity Solutions BACC45FT14-12P

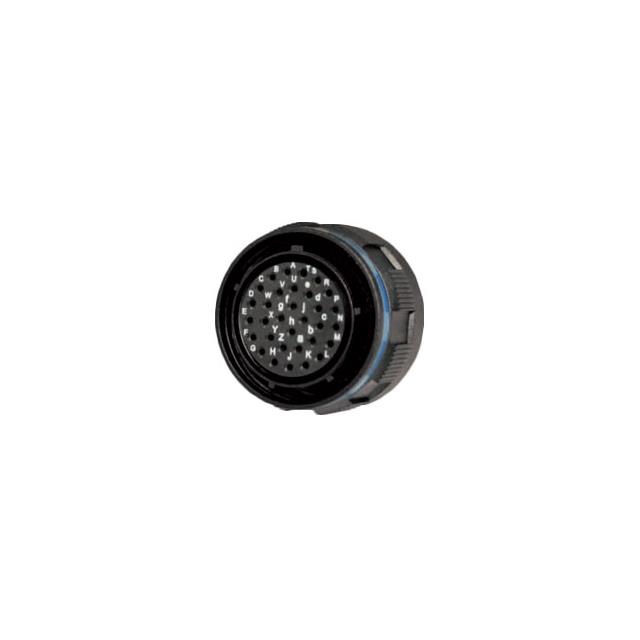

Images are for reference only
Manufacturer
Manufacturer No
BACC45FT14-12P
Packaging
Box
Description
CONN PLUG MALE 12POS GOLD CRIMP
Detailed Description
12 (Power) Position Circular Connector Plug, Male Pins Crimp
Datasheet
Payment
Delivery
Mfr
Cinch Connectivity Solutions
Color
-
Series
BACC45
Features
Coupling Nut
Packaging
Box
Shielding
Unshielded
Orientation
N (Normal)
Termination
Crimp
Applications
Aerospace, Aviation, Military
Shell Finish
Anodized
Cable Opening
0.664" (16.87mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Voltage Rating
500VAC
Insert Material
Epoxy, Glass Filled
Shell Size, MIL
-
Contact Material
-
Mounting Feature
-
Primary Material
Metal
Ingress Protection
Environment Sealed
Number of Positions
12 (Power)
Shell Size - Insert
14-12
Current Rating (Amps)
-
Operating Temperature
-55°C ~ 200°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions |
| Color | - |
| Series | BACC45 |
| Features | Coupling Nut |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Crimp |
| Applications | Aerospace, Aviation, Military |
| Shell Finish | Anodized |
| Cable Opening | 0.664" (16.87mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Voltage Rating | 500VAC |
| Insert Material | Epoxy, Glass Filled |
| Shell Size, MIL | - |
| Contact Material | - |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | Environment Sealed |
| Number of Positions | 12 (Power) |
| Shell Size - Insert | 14-12 |
| Current Rating (Amps) | - |
| Operating Temperature | -55°C ~ 200°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
