Step1: Product

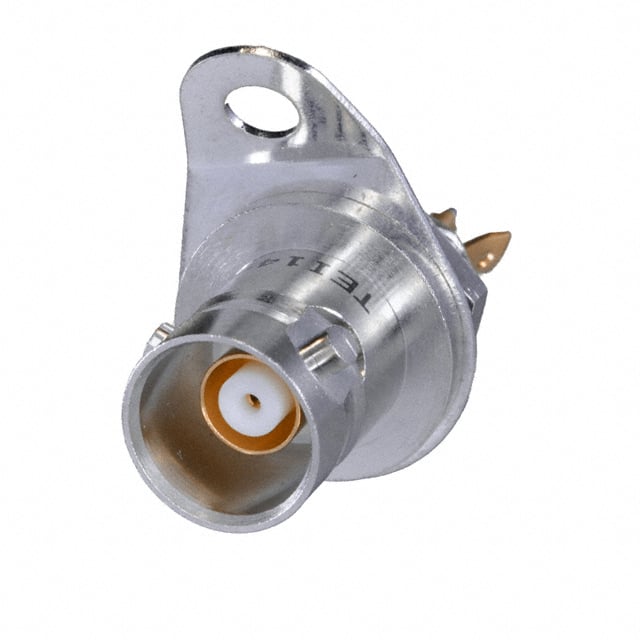

Cinch Connectivity Solutions Trompeter BJ77
Images are for reference only
Manufacturer
Manufacturer No
BJ77
Quantity
10
Availability
In Stock
Packaging
Bulk
Description
CONN TRB JACK STR SOLDER
Detailed Description
TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount Solder Cup
Datasheet
Payment
Delivery
Mfr
Cinch Connectivity Solutions Trompeter
Series
70
Features
Extended Insulation, Three Lug
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Impedance
Non-Constant
Packaging
Bulk
Body Finish
Nickel
Cable Group
-
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket (Concentric)
Fastening Type
Bayonet Lock
Insertion Loss
-
Voltage Rating
400 V
Connector Style
TRB, Twinaxial/Triaxial
Frequency - Max
500 MHz
Number of Ports
1
Mounting Feature
Bulkhead - Rear Side Nut
Ingress Protection
-
Shield Termination
Solder Tag
Base Product Number
-
Contact Termination
Solder Cup
Dielectric Material
-
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Trompeter |
| Series | 70 |
| Features | Extended Insulation, Three Lug |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Impedance | Non-Constant |
| Packaging | Bulk |
| Body Finish | Nickel |
| Cable Group | - |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket (Concentric) |
| Fastening Type | Bayonet Lock |
| Insertion Loss | - |
| Voltage Rating | 400 V |
| Connector Style | TRB, Twinaxial/Triaxial |
| Frequency - Max | 500 MHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Ingress Protection | - |
| Shield Termination | Solder Tag |
| Base Product Number | - |
| Contact Termination | Solder Cup |
| Dielectric Material | - |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
