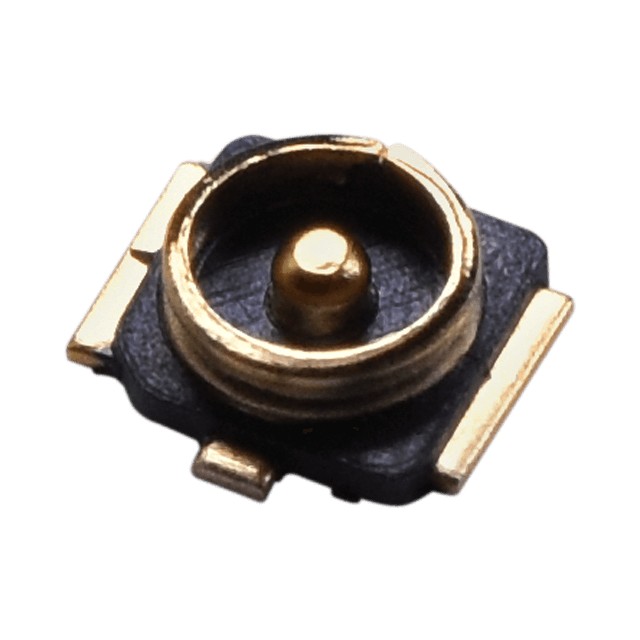

Cinch Connectivity Solutions Johnson 128-0711-221
Images are for reference only
Manufacturer
Manufacturer No
128-0711-221
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TAPE AND REEL, 10,000 PER REEL,
Detailed Description
I-PEX MHF4 Connector Receptacle, Male Pin 50 Ohms Surface Mount Solder
Datasheet
Payment
Delivery
Mfr
Cinch Connectivity Solutions Johnson
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Tape & Reel (TR); Cut Tape (CT)
Body Finish
Gold
Cable Group
-
Body Material
Beryllium Copper
Housing Color
Gold
Mating Cycles
500
Mounting Type
Surface Mount
Connector Type
Receptacle, Male Pin
Fastening Type
Snap-On
Insertion Loss
-
Voltage Rating
100 V
Connector Style
I-PEX MHF4
Frequency - Max
9 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Solder
Contact Termination
Solder
Dielectric Material
Thermoplastic
Operating Temperature
-40°C ~ 90°C
Center Contact Plating
Gold
Center Contact Material
Copper Alloy
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Body Finish | Gold |
| Cable Group | - |
| Body Material | Beryllium Copper |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Male Pin |
| Fastening Type | Snap-On |
| Insertion Loss | - |
| Voltage Rating | 100 V |
| Connector Style | I-PEX MHF4 |
| Frequency - Max | 9 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Solder |
| Contact Termination | Solder |
| Dielectric Material | Thermoplastic |
| Operating Temperature | -40°C ~ 90°C |
| Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy |
