Step1: Product

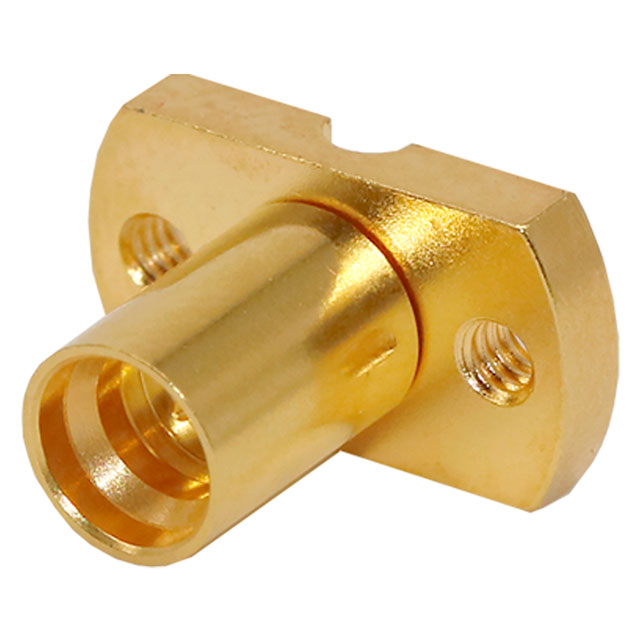

Cinch Connectivity Solutions Johnson 127-0701-631
Images are for reference only
Manufacturer
Manufacturer No
127-0701-631
Availability
In Stock
Packaging
Bag
Description
SMP COMPRESSION CONNECTOR, MICRO
Detailed Description
SMP Connector Jack, Male Pin 50 Ohms Surface Mount
Datasheet
Payment
Delivery
Mfr
Cinch Connectivity Solutions Johnson
Series
-
Features
Full Detent
Includes
-
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Cable Group
-
Body Material
Beryllium Copper, Brass
Housing Color
Gold
Mating Cycles
100
Mounting Type
Surface Mount
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Insertion Loss
-
Voltage Rating
335 V
Connector Style
SMP
Frequency - Max
40 GHz
Number of Ports
1
Mounting Feature
Flange
Ingress Protection
-
Shield Termination
Compression
Base Product Number
127-0701
Contact Termination
-
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Series | - |
| Features | Full Detent |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Cable Group | - |
| Body Material | Beryllium Copper, Brass |
| Housing Color | Gold |
| Mating Cycles | 100 |
| Mounting Type | Surface Mount |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Insertion Loss | - |
| Voltage Rating | 335 V |
| Connector Style | SMP |
| Frequency - Max | 40 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Ingress Protection | - |
| Shield Termination | Compression |
| Base Product Number | 127-0701 |
| Contact Termination | - |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
