Step1: Product

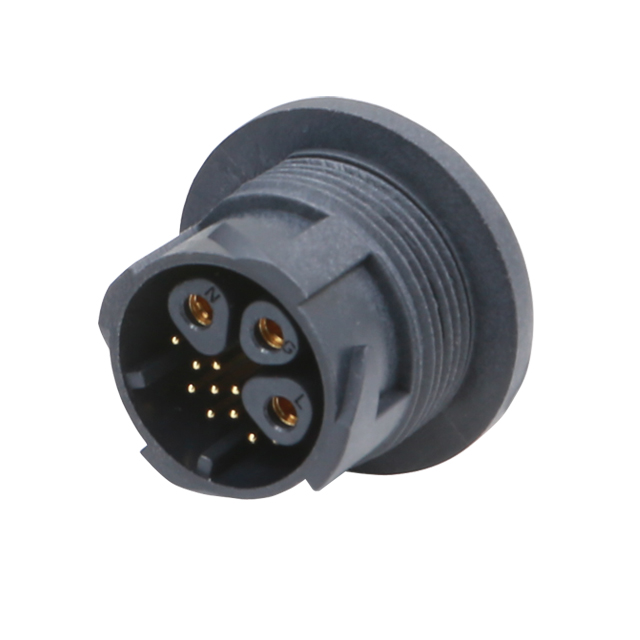

Chogori Technologies Inc. 24313635-01-501
Images are for reference only
Manufacturer
Manufacturer No
24313635-01-501
Packaging
Box
Description
LARGE3+13 4KEY PANEL MOUNT PCB T
Detailed Description
16 (13 + 3 Power) Position Circular Connector Receptacle, Female Sockets and Male Pins Solder
Datasheet
Payment
Delivery
Mfr
Chogori Technologies Inc.
Color
Black
Series
Large
Features
-
Packaging
Box
Shielding
Unshielded
Orientation
Keyed
Termination
Solder
Applications
-
Shell Finish
-
Cable Opening
-
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Female Sockets and Male Pins
Fastening Type
Push-Twist
Shell Material
Polyamide (PA), Nylon
Voltage Rating
60VAC
Insert Material
-
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
16 (13 + 3 Power)
Shell Size - Insert
-
Current Rating (Amps)
5A, 20A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Silver
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Chogori Technologies Inc. |
| Color | Black |
| Series | Large |
| Features | - |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | - |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Female Sockets and Male Pins |
| Fastening Type | Push-Twist |
| Shell Material | Polyamide (PA), Nylon |
| Voltage Rating | 60VAC |
| Insert Material | - |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 16 (13 + 3 Power) |
| Shell Size - Insert | - |
| Current Rating (Amps) | 5A, 20A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
