Step1: Product

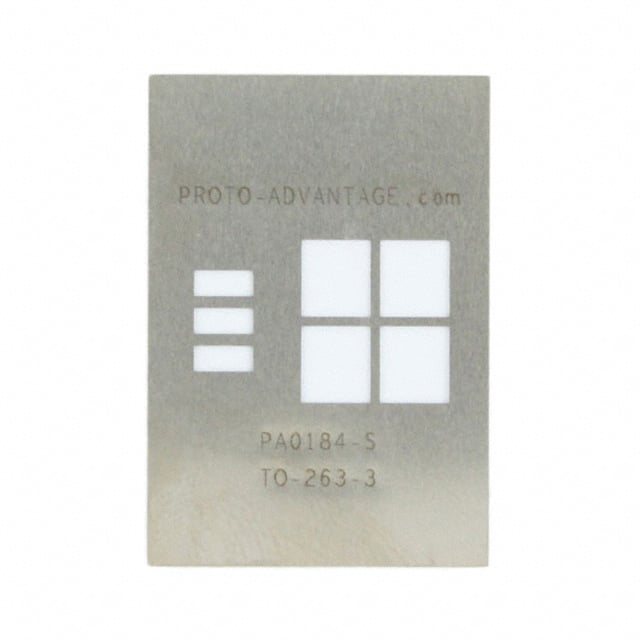

Chip Quik Inc. PA0184-S
Images are for reference only
Manufacturer
Manufacturer No
PA0184-S
Packaging
Bulk
Description
TO-263-3 STENCIL
Datasheet
Payment
Delivery
Type
TO/DDPAK
Pitch
0.100" (2.54mm)
Series
Proto-Advantage PA
Material
Stainless Steel
Packaging
Bulk
Thickness
0.0040" (0.102mm)
Manufacturer
Chip Quik Inc.
Inner Dimension
0.400" L x 0.390" W (10.16mm x 9.91mm)
Outer Dimension
1.300" L x 0.900" W (33.02mm x 22.86mm)
Thermal Center Pad
0.433" L x 0.394" W (11.00mm x 10.00mm)
Number of Positions
3
| Attribute | Value |
|---|---|
| Type | TO/DDPAK |
| Pitch | 0.100" (2.54mm) |
| Series | Proto-Advantage PA |
| Material | Stainless Steel |
| Packaging | Bulk |
| Thickness | 0.0040" (0.102mm) |
| Manufacturer | Chip Quik Inc. |
| Inner Dimension | 0.400" L x 0.390" W (10.16mm x 9.91mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Thermal Center Pad | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Number of Positions | 3 |
