Step1: Product
Chip Quik Inc. MPH-ETD-SHORT
Images are for reference only
Manufacturer
Manufacturer No
MPH-ETD-SHORT
Packaging
Bulk
Description

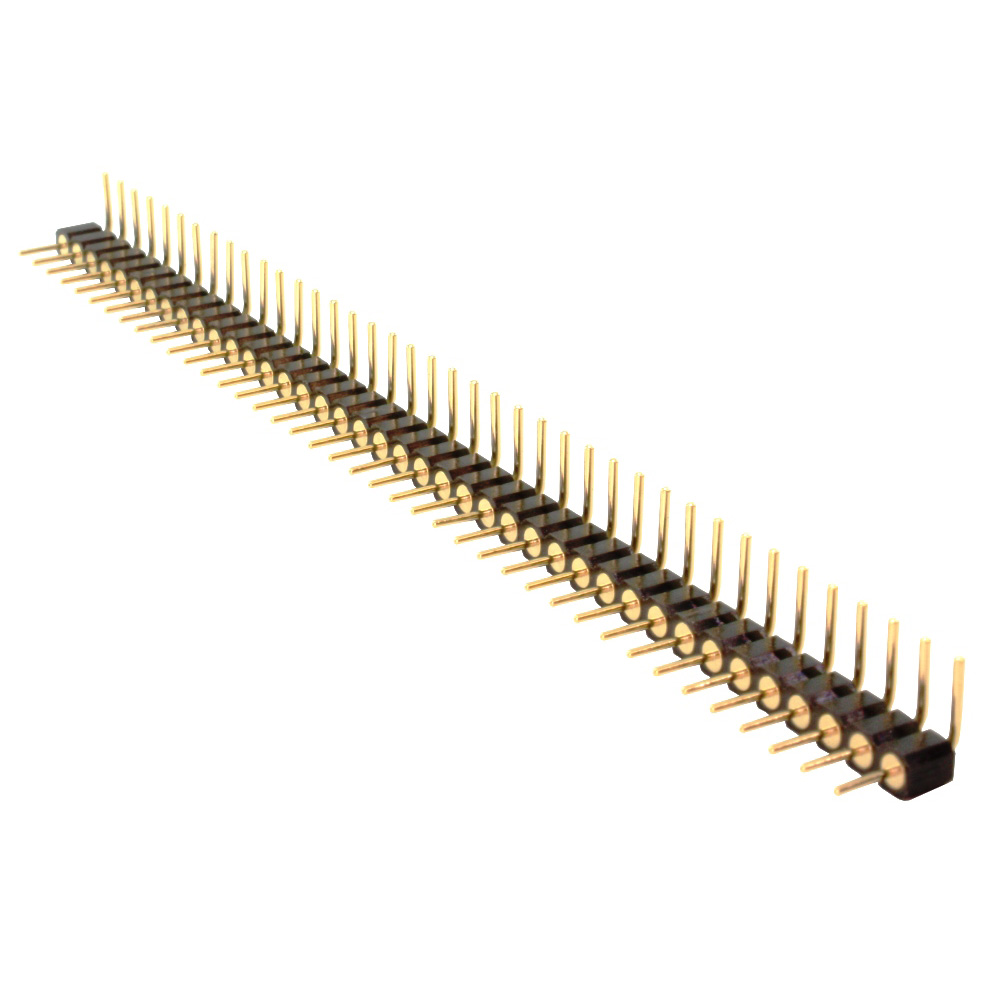

0.1" 40 PIN MACHINE PIN RIGHT AN
Detailed Description
Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
Chip Quik Inc.
Style
Board to Board
Series
MPH
Features
-
Packaging
Bulk
Shrouding
Unshrouded
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
-
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.118" (3.00mm)
Ingress Protection
-
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
40
Row Spacing - Mating
-
Contact Finish - Post
Gold
Contact Length - Post
0.150" (3.81mm)
Current Rating (Amps)
-
Operating Temperature
-40°C ~ 130°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Chip Quik Inc. |
| Style | Board to Board |
| Series | MPH |
| Features | - |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.118" (3.00mm) |
| Ingress Protection | - |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 40 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.150" (3.81mm) |
| Current Rating (Amps) | - |
| Operating Temperature | -40°C ~ 130°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
