Step1: Product

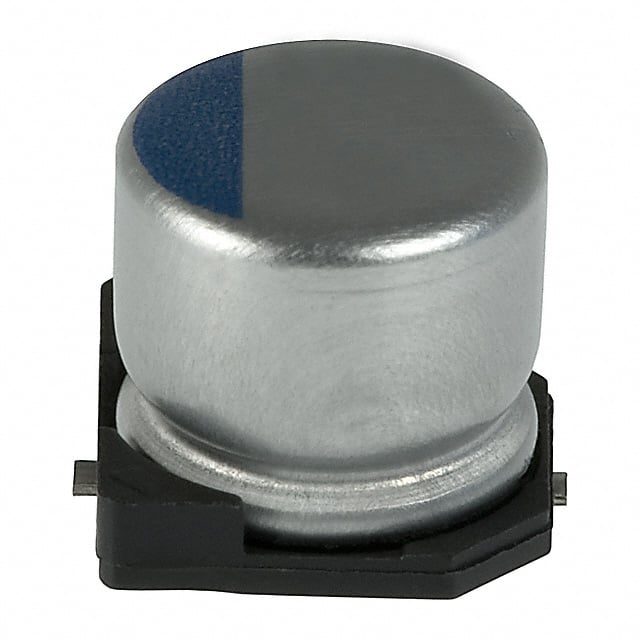

Chemi-Con HHXC500GRA121MJA0G
Images are for reference only
Manufacturer
Manufacturer No
HHXC500GRA121MJA0G
Package
Radial, Can - SMD
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CAP ALUMHYB 120UF 20% 50V SMD
Detailed Description
120 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 25mOhm 4000 Hrs @ 125°C
Datasheet
Payment
Delivery
Type
Hybrid
Series
HXC
Ratings
AEC-Q200
Features
Anti-Vibration
Packaging
Tape & Reel (TR); Cut Tape (CT)
Tolerance
±20%
Capacitance
120 µF
Applications
Automotive
Lead Spacing
-
Manufacturer
Chemi-Con
Mounting Type
Surface Mount
Package / Case
Radial, Can - SMD
Voltage - Rated
50 V
Lifetime @ Temp.
4000 Hrs @ 125°C
Size / Dimension
0.394" Dia (10.00mm)
Height - Seated (Max)
0.413" (10.50mm)
Operating Temperature
-55°C ~ 125°C
Surface Mount Land Size
0.406" L x 0.406" W (10.30mm x 10.30mm)
Ripple Current @ Low Frequency
160 mA @ 120 Hz
Ripple Current @ High Frequency
1.6 A @ 100 kHz
ESR (Equivalent Series Resistance)
25mOhm
| Attribute | Value |
|---|---|
| Type | Hybrid |
| Series | HXC |
| Ratings | AEC-Q200 |
| Features | Anti-Vibration |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 120 µF |
| Applications | Automotive |
| Lead Spacing | - |
| Manufacturer | Chemi-Con |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 50 V |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Operating Temperature | -55°C ~ 125°C |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | 25mOhm |
