Step1: Product

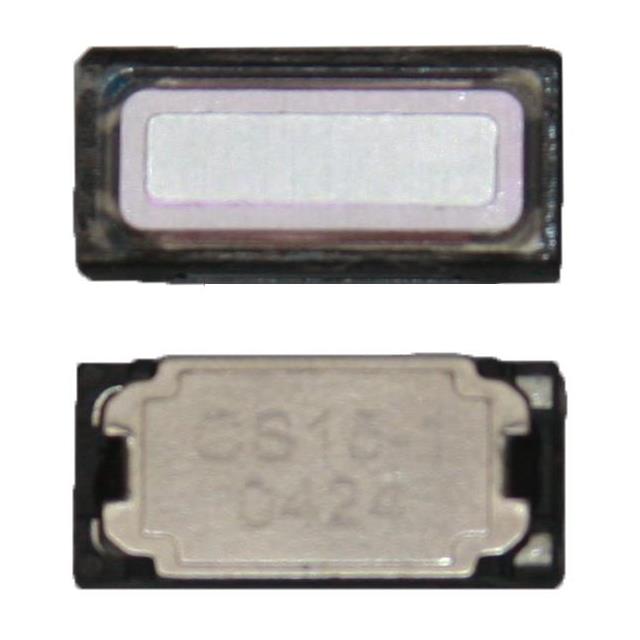

Challenge Electronics CS15-01P280-02-1
Images are for reference only
Manufacturer
Manufacturer No
CS15-01P280-02-1
Packaging
Tray
Description
SPEAKER 10.2OHM 1W 85DB
Detailed Description
10.2 Ohms General Purpose Speaker 1 W 200 Hz ~ 20 kHz Top Rectangular
Datasheet
Payment
Delivery
Type
General Purpose
Shape
Rectangular
Series
-
Ratings
-
Impedance
10.2 Ohms
Packaging
Tray
Technology
Magnetic
Power - Max
1.2 W
Termination
Solder Pads
Manufacturer
Challenge Electronics
Port Location
Top
Power - Rated
1 W
Frequency Range
200 Hz ~ 20 kHz
Material - Cone
Polyetheretherketone (PEEK)
Efficiency - dBA
85.00
Size / Dimension
0.591" L x 0.276" W (15.00mm x 7.00mm)
Distortion Rating
-
Efficiency - Type
Sound Pressure Level (SPL)
Material - Magnet
Nd-Fe-B
Ingress Protection
-
Efficiency - Testing
100mW/500mm
Height - Seated (Max)
0.079" (2.00mm)
Operating Temperature
-20°C ~ 65°C
Frequency - Self Resonant
2.8kHz
| Attribute | Value |
|---|---|
| Type | General Purpose |
| Shape | Rectangular |
| Series | - |
| Ratings | - |
| Impedance | 10.2 Ohms |
| Packaging | Tray |
| Technology | Magnetic |
| Power - Max | 1.2 W |
| Termination | Solder Pads |
| Manufacturer | Challenge Electronics |
| Port Location | Top |
| Power - Rated | 1 W |
| Frequency Range | 200 Hz ~ 20 kHz |
| Material - Cone | Polyetheretherketone (PEEK) |
| Efficiency - dBA | 85.00 |
| Size / Dimension | 0.591" L x 0.276" W (15.00mm x 7.00mm) |
| Distortion Rating | - |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Efficiency - Testing | 100mW/500mm |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Operating Temperature | -20°C ~ 65°C |
| Frequency - Self Resonant | 2.8kHz |
