Step1: Product

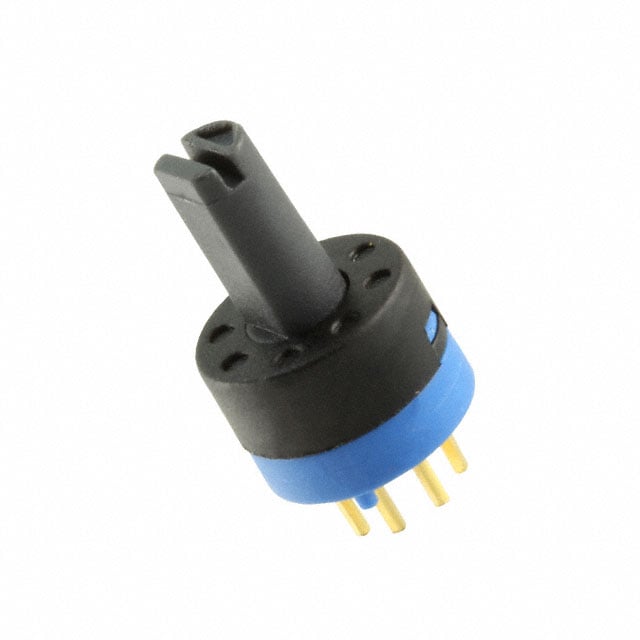

C&K RM103772BCB
Images are for reference only
Manufacturer
Manufacturer No
RM103772BCB
Quantity
10
Availability
In Stock
Packaging
Tray
Description
SWITCH ROTARY 3POS 500MA 24V
Detailed Description
Rotary Switch 3 Position SP3T 500mA (DC) AC Through Hole
Datasheet
Payment
Delivery
Series
RM
Features
-
Packaging
Tray
Index Stops
Fixed
Manufacturer
C&K
Actuator Type
Flatted (4.2mm Dia), Slotted
Mounting Type
Through Hole
Angle of Throw
45°
Contact Finish
Gold
Contact Timing
Non-Shorting (BBM)
Actuator Length
7.70mm
Number of Decks
1
Circuit per Deck
SP3T
Contact Material
Brass
Termination Style
PC Pin
Depth Behind Panel
7.37mm
Base Product Number
RM103
Number of Positions
3
Voltage Rating - DC
24 V
Current Rating (Amps)
500mA (DC)
Panel Cutout Dimensions
-
Number of Poles per Deck
1
| Attribute | Value |
|---|---|
| Series | RM |
| Features | - |
| Packaging | Tray |
| Index Stops | Fixed |
| Manufacturer | C&K |
| Actuator Type | Flatted (4.2mm Dia), Slotted |
| Mounting Type | Through Hole |
| Angle of Throw | 45° |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 7.70mm |
| Number of Decks | 1 |
| Circuit per Deck | SP3T |
| Contact Material | Brass |
| Termination Style | PC Pin |
| Depth Behind Panel | 7.37mm |
| Base Product Number | RM103 |
| Number of Positions | 3 |
| Voltage Rating - DC | 24 V |
| Current Rating (Amps) | 500mA (DC) |
| Panel Cutout Dimensions | - |
| Number of Poles per Deck | 1 |
