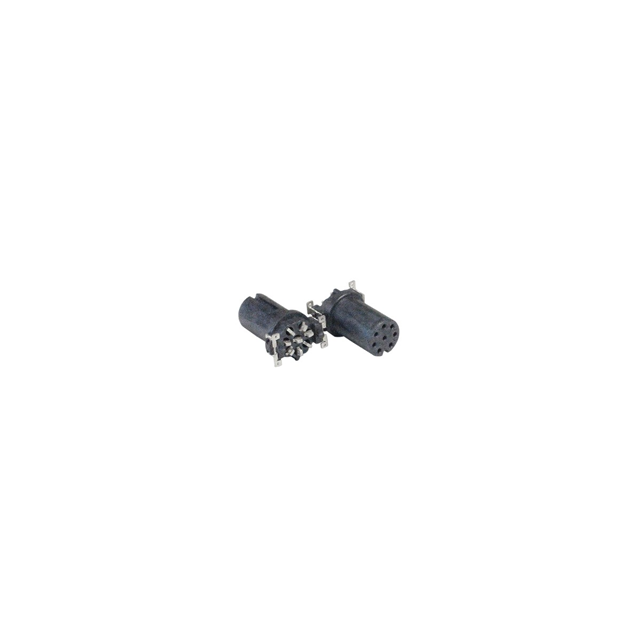

Bulgin PXPLCP12SMF05APC
Images are for reference only
Manufacturer
Manufacturer No
PXPLCP12SMF05APC
Availability
In Stock
Packaging
Bulk
Description
CONN PLUG FMALE 5POS GOLD SOLDER
Detailed Description
5 Position Circular Connector Plug, Female Sockets Solder
Datasheet
Payment
Delivery
Mfr
Bulgin
Color
-
Series
Buccaneer® M12
Features
-
Packaging
Bulk
Shielding
Unshielded
Orientation
A
Termination
Solder
Applications
Industrial, Instrumentation, Medical
Shell Finish
-
Cable Opening
-
Mounting Type
Surface Mount, Right Angle
Connector Type
Plug, Female Sockets
Fastening Type
Threaded
Shell Material
Liquid Crystal Polymer (LCP)
Voltage Rating
60V
Insert Material
-
Shell Size, MIL
-
Contact Material
Phosphor Bronze
Mounting Feature
-
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
PXPLCP12
Number of Positions
5
Shell Size - Insert
M12-5
Current Rating (Amps)
4A
Operating Temperature
-25°C ~ 80°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Bulgin |
| Color | - |
| Series | Buccaneer® M12 |
| Features | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | A |
| Termination | Solder |
| Applications | Industrial, Instrumentation, Medical |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Liquid Crystal Polymer (LCP) |
| Voltage Rating | 60V |
| Insert Material | - |
| Shell Size, MIL | - |
| Contact Material | Phosphor Bronze |
| Mounting Feature | - |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | PXPLCP12 |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -25°C ~ 80°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
