Step1: Product

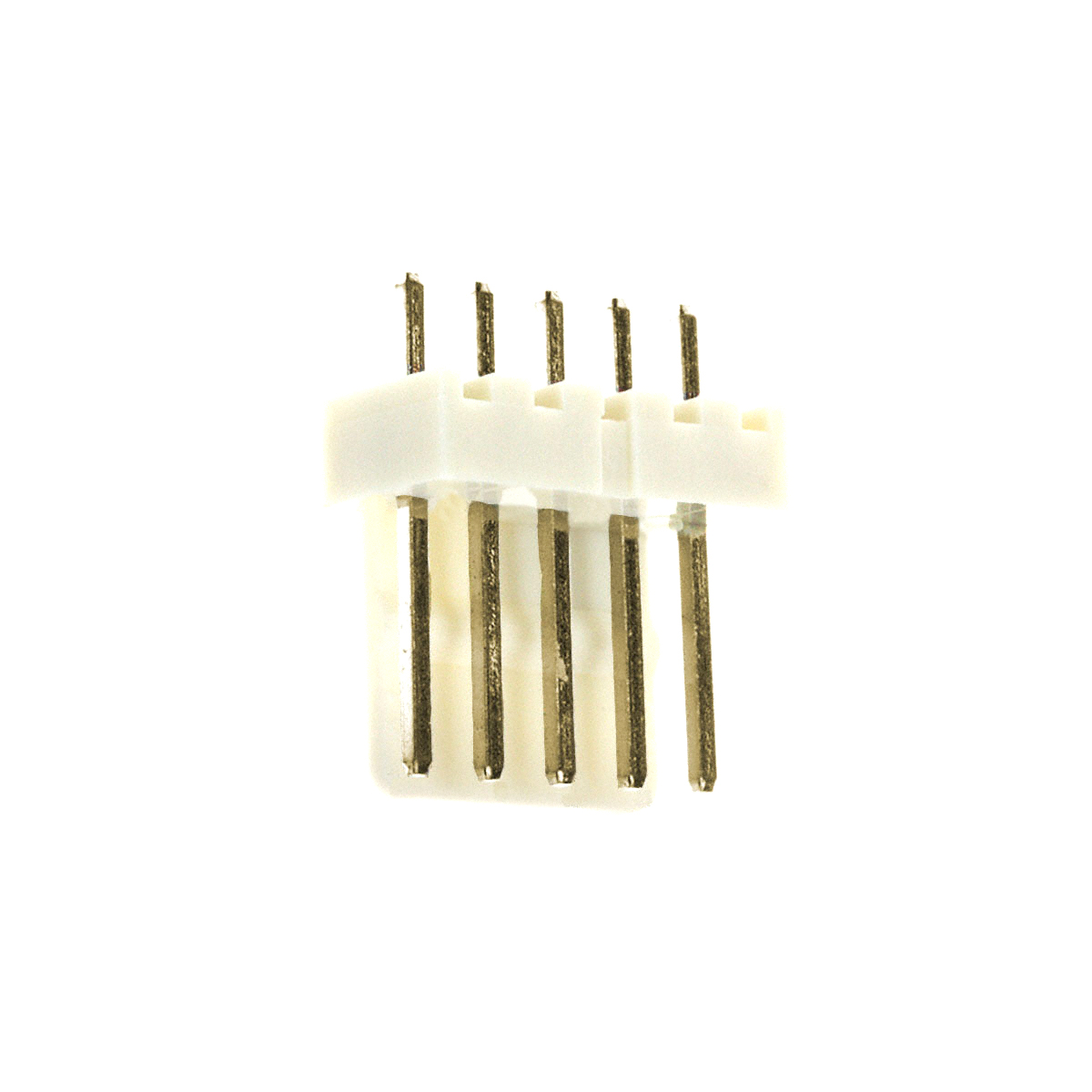

Bulgin 100287
Mfr
Bulgin
Style
Board to Cable/Wire
Series
-
Features
-
Packaging
Bulk
Shrouding
Shrouded - 1 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Friction Lock
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
-
Contact Material
-
Insulation Color
White
Insulation Height
0.126" (3.20mm)
Ingress Protection
-
Base Product Number
-
Insulation Material
-
Number of Positions
10
Row Spacing - Mating
-
Contact Finish - Post
-
Contact Length - Post
0.150" (3.81mm)
Current Rating (Amps)
-
Operating Temperature
-
Mated Stacking Heights
-
Overall Contact Length
0.560" (14.22mm)
Contact Finish - Mating
-
Contact Length - Mating
0.283" (7.19mm)
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Bulgin |
| Style | Board to Cable/Wire |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Friction Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | - |
| Insulation Color | White |
| Insulation Height | 0.126" (3.20mm) |
| Ingress Protection | - |
| Base Product Number | - |
| Insulation Material | - |
| Number of Positions | 10 |
| Row Spacing - Mating | - |
| Contact Finish - Post | - |
| Contact Length - Post | 0.150" (3.81mm) |
| Current Rating (Amps) | - |
| Operating Temperature | - |
| Mated Stacking Heights | - |
| Overall Contact Length | 0.560" (14.22mm) |
| Contact Finish - Mating | - |
| Contact Length - Mating | 0.283" (7.19mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
