Step1: Product

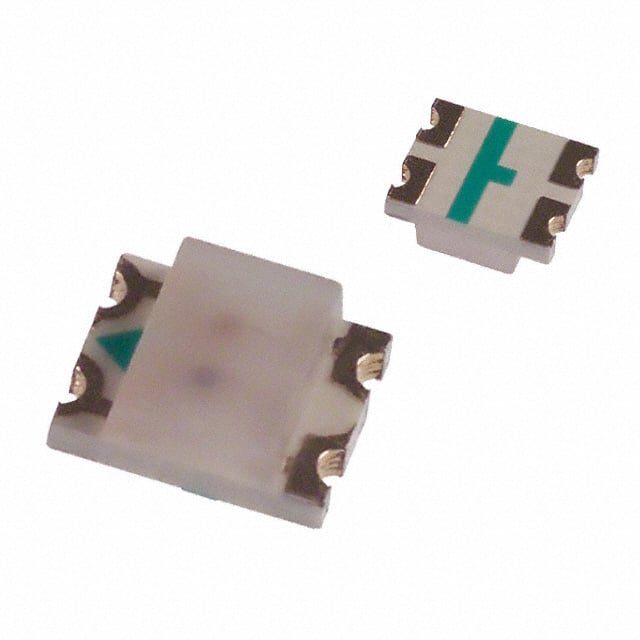

Broadcom Limited HSMF-C155
Images are for reference only
Manufacturer
Manufacturer No
HSMF-C155
Quantity
3,065
Availability
In Stock
Package
1210 (3225 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED GREEN/RED DIFF CHIP SMD
Detailed Description
Green, Red 572nm Green, 626nm Red LED Indication - Discrete 2.2V Green, 2.1V Red 1210 (3225 Metric)
Datasheet
Payment
Delivery
Mfr
Broadcom Limited
Color
Green, Red
Series
-
Features
-
Lens Size
2.06mm x 2.70mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
White
Lens Style
Rectangle with Flat Top
Height (Max)
1.10mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
170°
Current - Test
20mA Green, 20mA Red
Package / Case
1210 (3225 Metric)
Size / Dimension
3.20mm L x 2.70mm W
Lens Transparency
Diffused
Wavelength - Peak
570nm Green, 630nm Red
Base Product Number
HSMF-C155
Millicandela Rating
15mcd Green, 10mcd Red
Wavelength - Dominant
572nm Green, 626nm Red
Supplier Device Package
Chip LED
Voltage - Forward (Vf) (Typ)
2.2V Green, 2.1V Red
| Attribute | Value |
|---|---|
| Mfr | Broadcom Limited |
| Color | Green, Red |
| Series | - |
| Features | - |
| Lens Size | 2.06mm x 2.70mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Height (Max) | 1.10mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 170° |
| Current - Test | 20mA Green, 20mA Red |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 570nm Green, 630nm Red |
| Base Product Number | HSMF-C155 |
| Millicandela Rating | 15mcd Green, 10mcd Red |
| Wavelength - Dominant | 572nm Green, 626nm Red |
| Supplier Device Package | Chip LED |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.1V Red |
