Broadcom Limited HCPL-181-000E

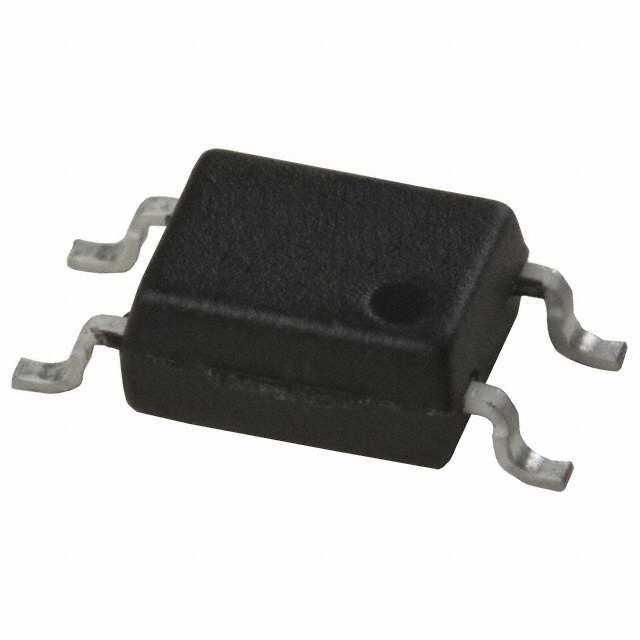

Images are for reference only
Manufacturer
Manufacturer No
HCPL-181-000E
Date Code
1825
Quantity
33
Availability
In Stock
Package
4-SOIC (0.209", 5.30mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
OPTOISOLTR 3.75KV 1CH TRANS 4-SO
Detailed Description
Optoisolator Transistor Output 3750Vrms 1 Channel 4-SO
Datasheet
Payment
Delivery
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
DC
Output Type
Transistor
Manufacturer
Broadcom Limited
Mounting Type
Surface Mount
Package / Case
4-SOIC (0.209", 5.30mm Width)
Number of Channels
1
Base Product Number
HCPL-181
Voltage - Isolation
3750Vrms
Vce Saturation (Max)
200mV
Operating Temperature
-55°C ~ 100°C
Rise / Fall Time (Typ)
4µs, 3µs
Voltage - Output (Max)
80V
Supplier Device Package
4-SO
Current - Output / Channel
50mA
Current Transfer Ratio (Max)
600% @ 5mA
Current Transfer Ratio (Min)
50% @ 5mA
Voltage - Forward (Vf) (Typ)
1.2V
Turn On / Turn Off Time (Typ)
-
Current - DC Forward (If) (Max)
50 mA
| Attribute | Value |
|---|---|
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | DC |
| Output Type | Transistor |
| Manufacturer | Broadcom Limited |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.209", 5.30mm Width) |
| Number of Channels | 1 |
| Base Product Number | HCPL-181 |
| Voltage - Isolation | 3750Vrms |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -55°C ~ 100°C |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Voltage - Output (Max) | 80V |
| Supplier Device Package | 4-SO |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Turn On / Turn Off Time (Typ) | - |
| Current - DC Forward (If) (Max) | 50 mA |
