Step1: Product

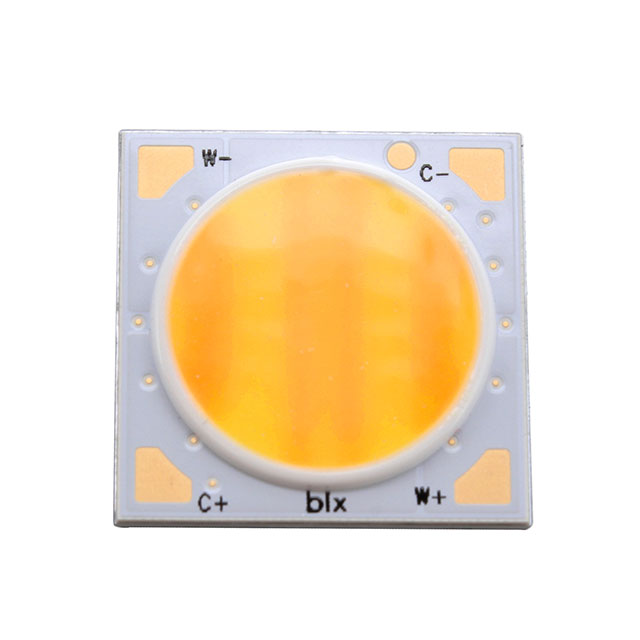

Bridgelux BXRV-TR-2750G-20A0-A-23
Images are for reference only
Manufacturer
Manufacturer No
BXRV-TR-2750G-20A0-A-23
Availability
In Stock
Packaging
Tube
Description
LED COB VESTA WHITE SQUARE 3850K
Detailed Description
LED Lighting COBs Engines Modules Chip On Board (COB) Vesta™ White, Warm / White, Cool Square
Datasheet
Payment
Delivery
Type
Chip On Board (COB)
Color
White, Warm / White, Cool
Height
1.65mm
Series
Vesta™
CCT (K)
3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse
Features
-
Lens Type
Flat
Packaging
Tube
Wavelength
-
Manufacturer
Bridgelux
Configuration
Square
Current - Max
700mA
Viewing Angle
130°
Current - Test
500mA
Size / Dimension
18.80mm L x 18.80mm W
Temperature - Test
25°C
Base Product Number
BXRV-TR-27
CRI (Color Rendering Index)
90
Light Emitting Surface (LES)
14.25mm Dia
Lumens/Watt @ Current - Test
124 lm/W
Voltage - Forward (Vf) (Typ)
35.9V
Luminous Flux @ Current/Temperature
2220lm (Typ)
| Attribute | Value |
|---|---|
| Type | Chip On Board (COB) |
| Color | White, Warm / White, Cool |
| Height | 1.65mm |
| Series | Vesta™ |
| CCT (K) | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse |
| Features | - |
| Lens Type | Flat |
| Packaging | Tube |
| Wavelength | - |
| Manufacturer | Bridgelux |
| Configuration | Square |
| Current - Max | 700mA |
| Viewing Angle | 130° |
| Current - Test | 500mA |
| Size / Dimension | 18.80mm L x 18.80mm W |
| Temperature - Test | 25°C |
| Base Product Number | BXRV-TR-27 |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 14.25mm Dia |
| Lumens/Watt @ Current - Test | 124 lm/W |
| Voltage - Forward (Vf) (Typ) | 35.9V |
| Luminous Flux @ Current/Temperature | 2220lm (Typ) |
