Step1: Product
Bourns Inc. SRR1280-330M

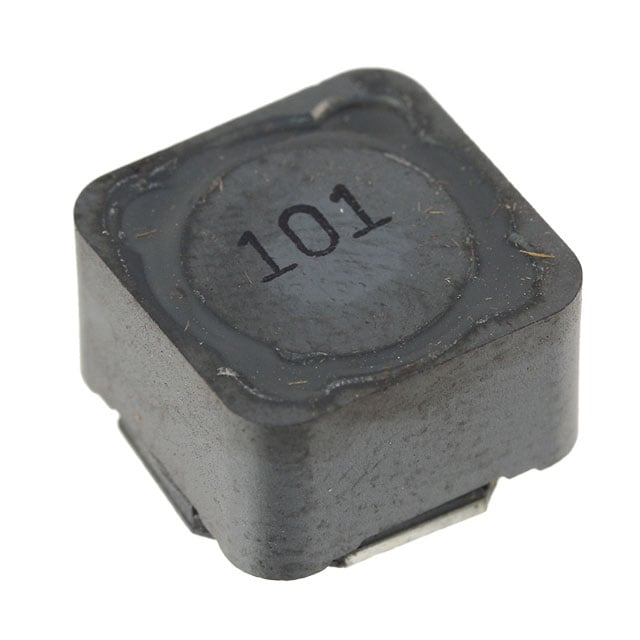

Images are for reference only
Manufacturer
Manufacturer No
SRR1280-330M
Date Code
25+
Quantity
2,000
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
FIXED IND 33UH 3.5A 57 MOHM SMD
Detailed Description
33 µH Shielded Drum Core, Wirewound Inductor 3.5 A 57mOhm Max Nonstandard
Datasheet
Payment
Delivery
Mfr
Bourns Inc.
Type
Drum Core, Wirewound
Series
SRR1280
Ratings
-
Q @ Freq
28 @ 2.52MHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Tolerance
±20%
Inductance
33 µH
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Ferrite
Size / Dimension
0.492" L x 0.492" W (12.50mm x 12.50mm)
Base Product Number
SRR1280
DC Resistance (DCR)
57mOhm Max
Current Rating (Amps)
3.5 A
Height - Seated (Max)
0.315" (8.00mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
-
Frequency - Self Resonant
9.5MHz
Current - Saturation (Isat)
3.3A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Bourns Inc. |
| Type | Drum Core, Wirewound |
| Series | SRR1280 |
| Ratings | - |
| Q @ Freq | 28 @ 2.52MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 33 µH |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Base Product Number | SRR1280 |
| DC Resistance (DCR) | 57mOhm Max |
| Current Rating (Amps) | 3.5 A |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | 9.5MHz |
| Current - Saturation (Isat) | 3.3A |
| Inductance Frequency - Test | 100 kHz |
