Step1: Product

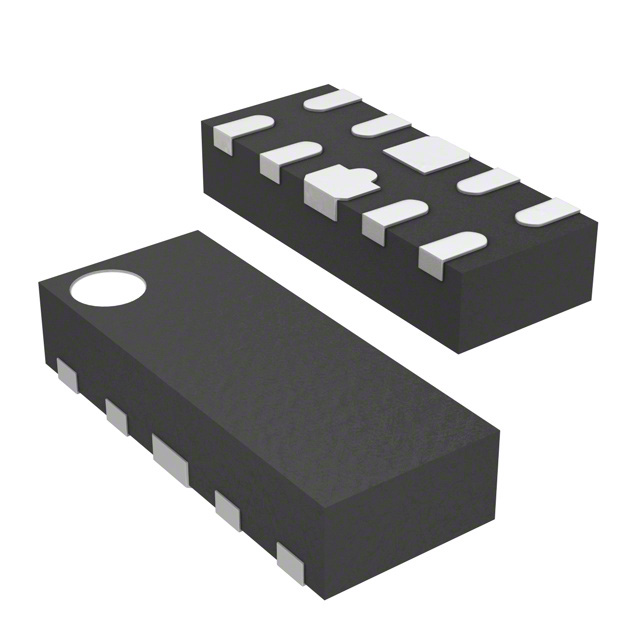

Bourns Inc. CDDFN10-0524P
Images are for reference only
Manufacturer
Manufacturer No
CDDFN10-0524P
Quantity
5,080
Availability
In Stock
Package
10-UFDFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 5VWM 12VC 10DFN
Detailed Description
12V (Typ) Clamp 3.8A (8/20µs) Ipp Tvs Diode Surface Mount 10-DFN (2.5x1)
Datasheet
Payment
Delivery
Mfr
Bourns Inc.
Type
Steering (Rail to Rail)
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
HDMI
Mounting Type
Surface Mount
Package / Case
10-UFDFN
Power - Peak Pulse
30W
Base Product Number
CDDFN10
Operating Temperature
-55°C ~ 85°C (TA)
Power Line Protection
Yes
Capacitance @ Frequency
-
Supplier Device Package
10-DFN (2.5x1)
Unidirectional Channels
4
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) @ Ipp
12V (Typ)
Voltage - Reverse Standoff (Typ)
5V (Max)
Current - Peak Pulse (10/1000µs)
3.8A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Bourns Inc. |
| Type | Steering (Rail to Rail) |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | HDMI |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN |
| Power - Peak Pulse | 30W |
| Base Product Number | CDDFN10 |
| Operating Temperature | -55°C ~ 85°C (TA) |
| Power Line Protection | Yes |
| Capacitance @ Frequency | - |
| Supplier Device Package | 10-DFN (2.5x1) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 12V (Typ) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Current - Peak Pulse (10/1000µs) | 3.8A (8/20µs) |
