Step1: Product

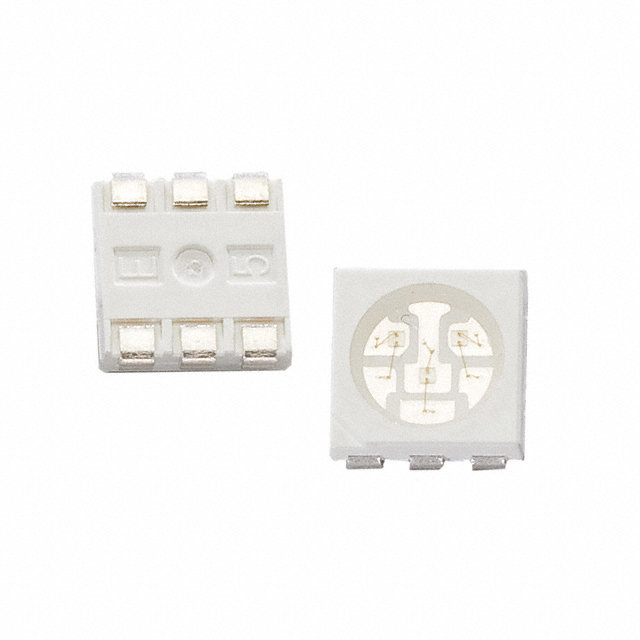

Bivar Inc. SMTL6-RGB-1
Images are for reference only
Manufacturer
Manufacturer No
SMTL6-RGB-1
Package
6-SMD, J-Lead
Packaging
Tape & Reel (TR)
Description
LED RGB CLEAR 6PLCC SMD
Detailed Description
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.2V Red, 3V Green, 3V Blue 6-SMD, J-Lead
Datasheet
Payment
Delivery
Mfr
Bivar Inc.
Color
Red, Green, Blue (RGB)
Grade
-
Series
-
Features
-
Lens Size
4.00mm Dia
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Round with Flat Top
Height (Max)
1.75mm
Configuration
Independent
Mounting Type
Surface Mount
Qualification
-
Viewing Angle
120°
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
6-SMD, J-Lead
Size / Dimension
5.00mm L x 5.00mm W
Lens Transparency
Clear
Wavelength - Peak
-
Base Product Number
SMTL6
Millicandela Rating
900mcd Red,1500mcd Green, 300mcd Blue
Wavelength - Dominant
624nm Red, 525nm Green, 470nm Blue
Supplier Device Package
6-PLCC
Voltage - Forward (Vf) (Typ)
2.2V Red, 3V Green, 3V Blue
| Attribute | Value |
|---|---|
| Mfr | Bivar Inc. |
| Color | Red, Green, Blue (RGB) |
| Grade | - |
| Series | - |
| Features | - |
| Lens Size | 4.00mm Dia |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Round with Flat Top |
| Height (Max) | 1.75mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Qualification | - |
| Viewing Angle | 120° |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension | 5.00mm L x 5.00mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | - |
| Base Product Number | SMTL6 |
| Millicandela Rating | 900mcd Red,1500mcd Green, 300mcd Blue |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | 6-PLCC |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3V Green, 3V Blue |
