Step1: Product

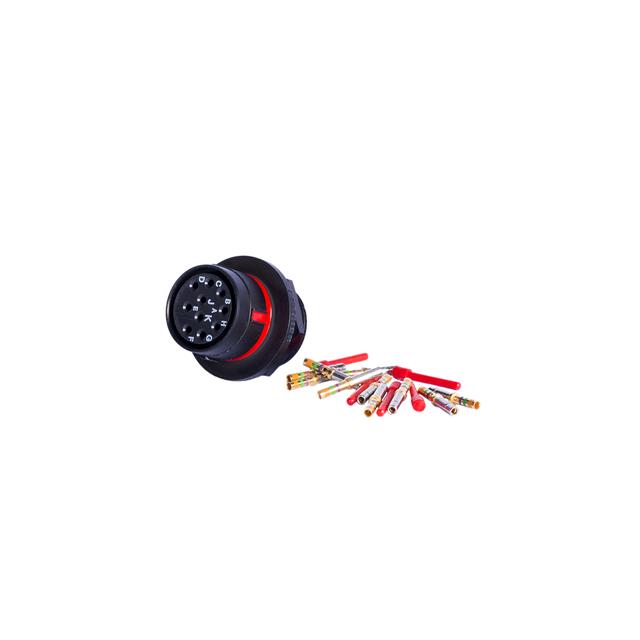

BERNIER Connect 22111003
Images are for reference only
Manufacturer
Manufacturer No
22111003
Packaging
Bag
Description
FEMALE RECEPTACLE 10 CONTACTS GA
Detailed Description
10 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
BERNIER Connect
Color
Black
Series
221
Features
-
Packaging
Bag
Shielding
Shielded
Orientation
N (Normal)
Termination
Solder Cup
Applications
-
Shell Finish
-
Cable Opening
-
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Aluminum Alloy
Voltage Rating
1.8kV
Insert Material
Thermoplastic
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
Metal
Ingress Protection
IP68 - Dust Tight, Waterproof
Number of Positions
10
Shell Size - Insert
-
Current Rating (Amps)
7.5A
Operating Temperature
-45°C ~ 125°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | BERNIER Connect |
| Color | Black |
| Series | 221 |
| Features | - |
| Packaging | Bag |
| Shielding | Shielded |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Applications | - |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 1.8kV |
| Insert Material | Thermoplastic |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Positions | 10 |
| Shell Size - Insert | - |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -45°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
