BellWether 70367-1224
Images are for reference only
Manufacturer
Manufacturer No
70367-1224
Packaging
Tape & Reel (TR)
Description

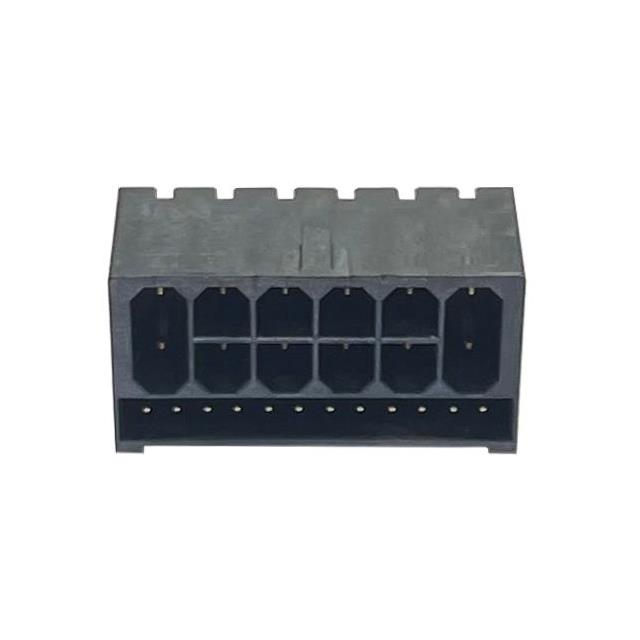

HEADER M-PIC 12V 24POS R/A DIP
Detailed Description
Connector Header Through Hole, Right Angle 24 (12 Power + 12 Signal) position
Datasheet
Payment
Delivery
Mfr
BellWether
Style
Board to Cable/Wire
Series
-
Features
Board Guide
Packaging
Tape & Reel (TR)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
3
Pitch - Mating
-
Voltage Rating
600V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.390" (9.91mm)
Ingress Protection
-
Insulation Material
Thermoplastic, Glass Filled
Number of Positions
24 (12 Power + 12 Signal)
Contact Finish - Post
Gold
Contact Length - Post
0.125" (3.18mm)
Operating Temperature
-40°C ~ 105°C
Overall Contact Length
-
Contact Finish - Mating
-
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Mfr | BellWether |
| Style | Board to Cable/Wire |
| Series | - |
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 3 |
| Pitch - Mating | - |
| Voltage Rating | 600V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.390" (9.91mm) |
| Ingress Protection | - |
| Insulation Material | Thermoplastic, Glass Filled |
| Number of Positions | 24 (12 Power + 12 Signal) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.125" (3.18mm) |
| Operating Temperature | -40°C ~ 105°C |
| Overall Contact Length | - |
| Contact Finish - Mating | - |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
