Step1: Product

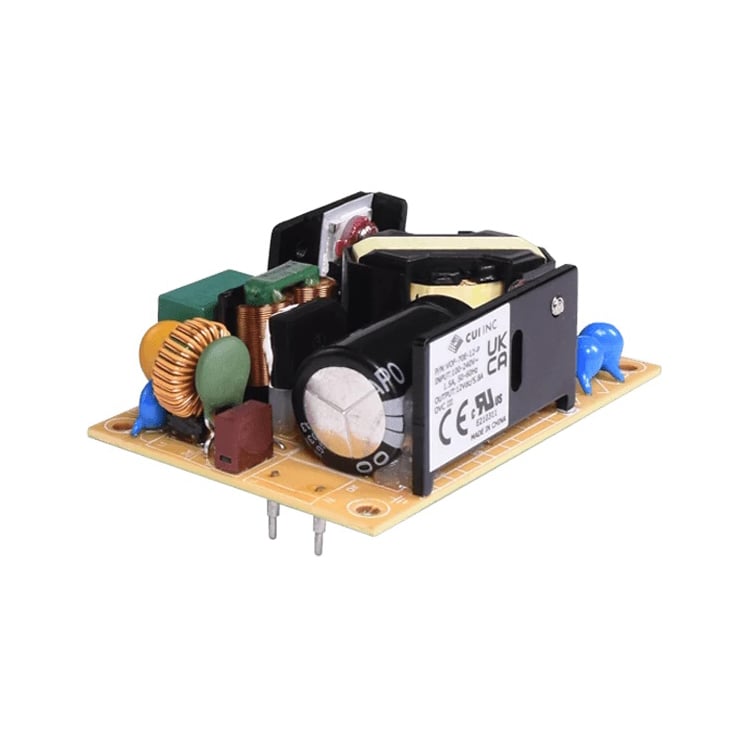

Bel Power Solutions VOF-70E-24-P
Images are for reference only
Manufacturer
Manufacturer No
VOF-70E-24-P
Package
6-DIP Module
Packaging
Box
Description
AC/DC CONVERTER 24V 70W
Detailed Description
Open Frame AC DC Converters 1 Output 24V 2.92A 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
Payment
Delivery
Type
Open Frame
Series
VOF-70E (70W)
Weight
-
Features
Universal Input
Packaging
Box
Efficiency
90%
Applications
Household Appliances, ITE (Commercial)
Manufacturer
Bel Power Solutions
Mounting Type
Through Hole
Power (Watts)
70 W
Package / Case
6-DIP Module
Approval Agency
CE, cURus, UKCA
Line Regulation
±0.5%
Load Regulation
±1%
Standard Number
60335-1; 62368-1
Voltage - Input
85 ~ 264 VAC, 120 ~ 370 VDC
Size / Dimension
3.00" L x 2.00" W x 1.14" H (76.2mm x 50.8mm x 29.0mm)
Number of Outputs
1
Voltage - Output 1
24V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Base Product Number
VOF-70E
Operating Temperature
-30°C ~ 80°C (With Derating)
Current - Output (Max)
2.92A
| Attribute | Value |
|---|---|
| Type | Open Frame |
| Series | VOF-70E (70W) |
| Weight | - |
| Features | Universal Input |
| Packaging | Box |
| Efficiency | 90% |
| Applications | Household Appliances, ITE (Commercial) |
| Manufacturer | Bel Power Solutions |
| Mounting Type | Through Hole |
| Power (Watts) | 70 W |
| Package / Case | 6-DIP Module |
| Approval Agency | CE, cURus, UKCA |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Standard Number | 60335-1; 62368-1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Size / Dimension | 3.00" L x 2.00" W x 1.14" H (76.2mm x 50.8mm x 29.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Base Product Number | VOF-70E |
| Operating Temperature | -30°C ~ 80°C (With Derating) |
| Current - Output (Max) | 2.92A |
