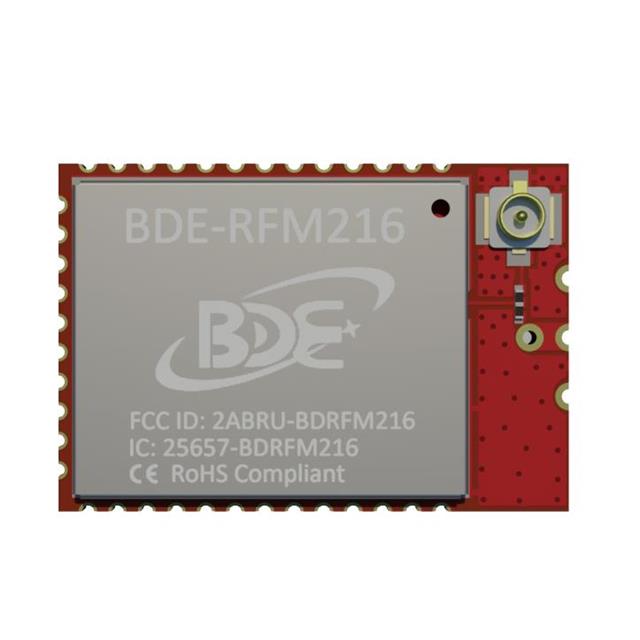

BDE Technology BDE-RFM216
Images are for reference only
Manufacturer
Manufacturer No
BDE-RFM216
Package
39-SMD Module
Packaging
Tape & Reel (TR)
Description
RF TXRX MODULE 802.15.4 U.FL SMD
Detailed Description
802.15.4, Wireless M-Bus, 6LoWPAN, Wi-SUN NWP, Amazon Sidewalk IEEE 802.15.4, Wireless M-Bus (T, S, C, N Mode), 6LoWPAN, Wi-SUN NWP, Amazon Sidewalk Transceiver Module 868MHz, 915MHz Antenna Not Included, U.FL Surface Mount
Datasheet
Payment
Delivery
Mfr
BDE Technology
Series
-
Protocol
IEEE 802.15.4, Wireless M-Bus (T, S, C, N Mode), 6LoWPAN, Wi-SUN NWP, Amazon Sidewalk
Data Rate
1Mbps
Frequency
868MHz, 915MHz
Packaging
Tape & Reel (TR)
Modulation
2GFSK, 4GFSK, GFSK
Memory Size
352kB Flash, 80kB RAM
Sensitivity
-125dBm
Antenna Type
Antenna Not Included, U.FL
Mounting Type
Surface Mount
Package / Case
39-SMD Module
Power - Output
14dBm
Voltage - Supply
1.8V ~ 3.8V
Serial Interfaces
I2C, I2S, SPI, UART
RF Family/Standard
802.15.4, Wireless M-Bus, 6LoWPAN, Wi-SUN NWP, Amazon Sidewalk
Utilized IC / Part
CC1312R
Current - Receiving
5.8mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
8mA ~ 24.9mA
| Attribute | Value |
|---|---|
| Mfr | BDE Technology |
| Series | - |
| Protocol | IEEE 802.15.4, Wireless M-Bus (T, S, C, N Mode), 6LoWPAN, Wi-SUN NWP, Amazon Sidewalk |
| Data Rate | 1Mbps |
| Frequency | 868MHz, 915MHz |
| Packaging | Tape & Reel (TR) |
| Modulation | 2GFSK, 4GFSK, GFSK |
| Memory Size | 352kB Flash, 80kB RAM |
| Sensitivity | -125dBm |
| Antenna Type | Antenna Not Included, U.FL |
| Mounting Type | Surface Mount |
| Package / Case | 39-SMD Module |
| Power - Output | 14dBm |
| Voltage - Supply | 1.8V ~ 3.8V |
| Serial Interfaces | I2C, I2S, SPI, UART |
| RF Family/Standard | 802.15.4, Wireless M-Bus, 6LoWPAN, Wi-SUN NWP, Amazon Sidewalk |
| Utilized IC / Part | CC1312R |
| Current - Receiving | 5.8mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 8mA ~ 24.9mA |
