Step1: Product

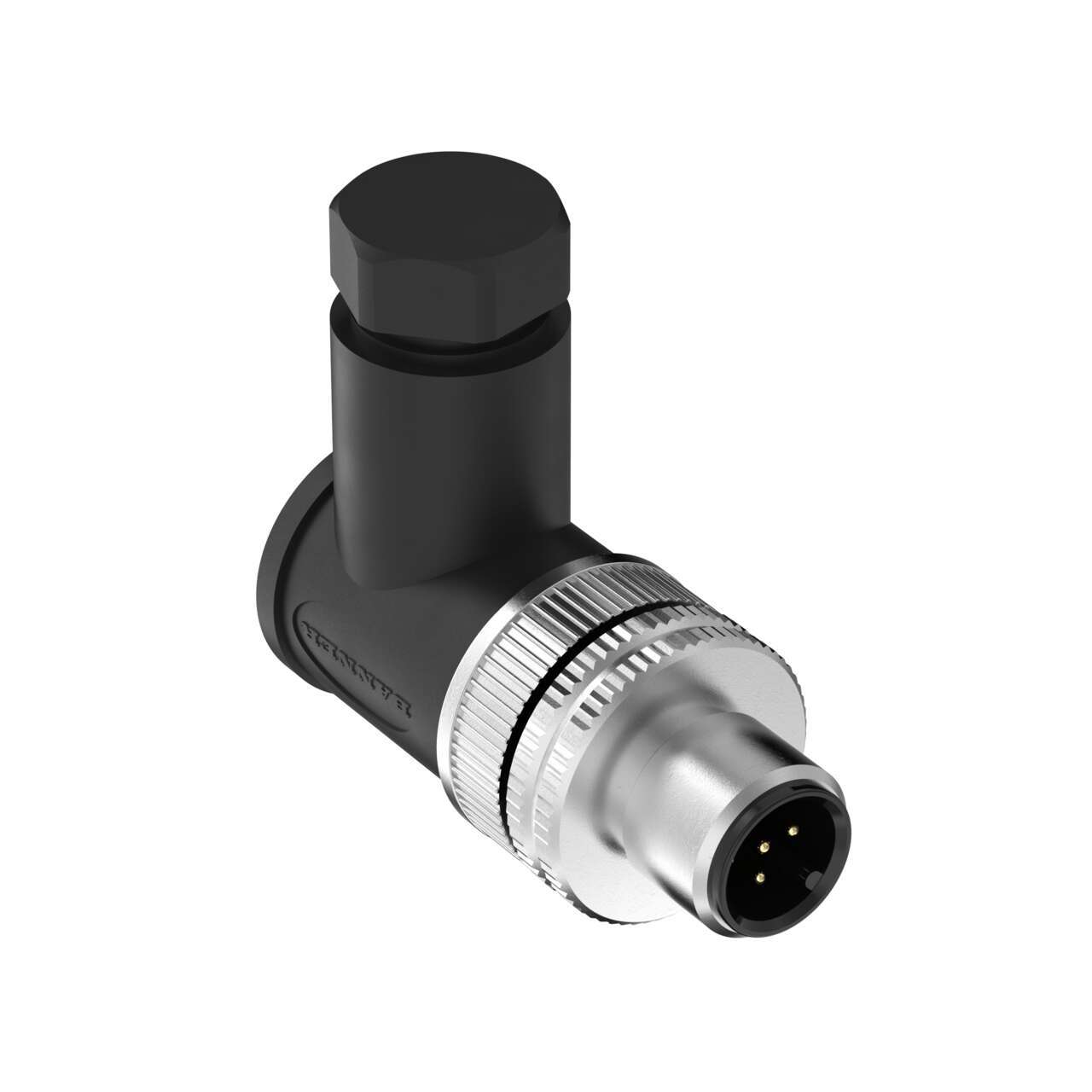

Banner Engineering Corporation BFW-M12M5A-6X
Images are for reference only
Manufacturer
Manufacturer No
BFW-M12M5A-6X
Packaging
Bag
Description
FIELD WIREABLE CONNECTOR, M12
Detailed Description
5 Position Circular Connector Plug, Male Pins Screw
Datasheet
Payment
Delivery
Mfr
Banner Engineering Corporation
Color
Black
Series
BFW
Features
Backshell, Coupling Nut
Packaging
Bag
Shielding
Unshielded
Orientation
A
Termination
Screw
Applications
-
Shell Finish
-
Cable Opening
0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug, Male Pins
Fastening Type
Threaded
Shell Material
Polyamide (PA), Nylon, Glass Filled
Voltage Rating
60VAC/DC
Insert Material
Thermoplastic Polyurethane (TPU)
Shell Size, MIL
-
Contact Material
Brass
Mounting Feature
-
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
5
Shell Size - Insert
M12-5
Current Rating (Amps)
4A
Operating Temperature
-25°C ~ 90°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Banner Engineering Corporation |
| Color | Black |
| Series | BFW |
| Features | Backshell, Coupling Nut |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | A |
| Termination | Screw |
| Applications | - |
| Shell Finish | - |
| Cable Opening | 0.236" ~ 0.315" (6.00mm ~ 8.00mm) |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Polyamide (PA), Nylon, Glass Filled |
| Voltage Rating | 60VAC/DC |
| Insert Material | Thermoplastic Polyurethane (TPU) |
| Shell Size, MIL | - |
| Contact Material | Brass |
| Mounting Feature | - |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -25°C ~ 90°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
