Step1: Product

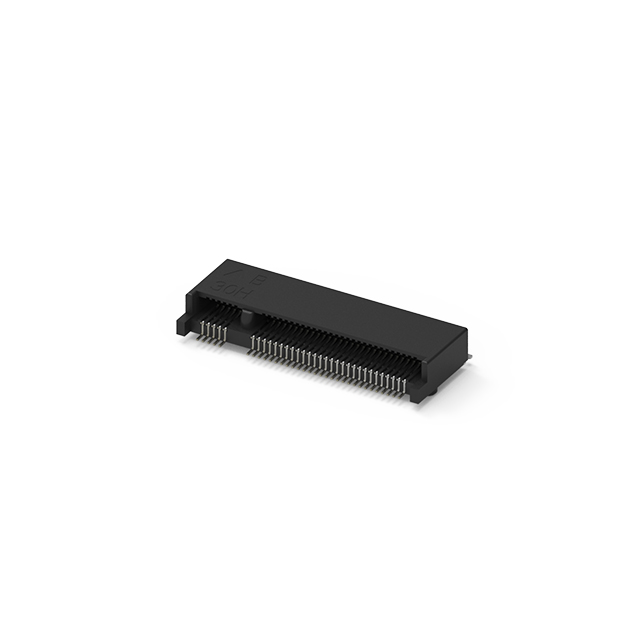

ATTEND Technology 123A-30B00
Images are for reference only
Manufacturer
Manufacturer No
123A-30B00
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
M.2 SOCKET H3.0 B KEY 0.5 PITCH
Detailed Description
67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
Datasheet
Payment
Delivery
Color
Black
Pitch
0.020" (0.50mm)
Gender
Female
Series
-
Features
Board Guide, Solder Retention
Read Out
Dual
Card Type
M.2 (NGFF) Mini Card
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Contact Type
Cantilever
Manufacturer
ATTEND Technology
Mounting Type
Surface Mount, Right Angle
Card Thickness
0.031" (0.79mm)
Contact Finish
Gold
Flange Feature
-
Number of Rows
2
Contact Material
Phosphor Bronze
Termination Rows
2
Number of Positions
67
Material - Insulation
Liquid Crystal Polymer (LCP)
Operating Temperature
-40°C ~ 85°C
Contact Finish Thickness
Flash
Number of Positions/Bay/Row
-
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.020" (0.50mm) |
| Gender | Female |
| Series | - |
| Features | Board Guide, Solder Retention |
| Read Out | Dual |
| Card Type | M.2 (NGFF) Mini Card |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Contact Type | Cantilever |
| Manufacturer | ATTEND Technology |
| Mounting Type | Surface Mount, Right Angle |
| Card Thickness | 0.031" (0.79mm) |
| Contact Finish | Gold |
| Flange Feature | - |
| Number of Rows | 2 |
| Contact Material | Phosphor Bronze |
| Termination Rows | 2 |
| Number of Positions | 67 |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish Thickness | Flash |
| Number of Positions/Bay/Row | - |
