Step1: Product

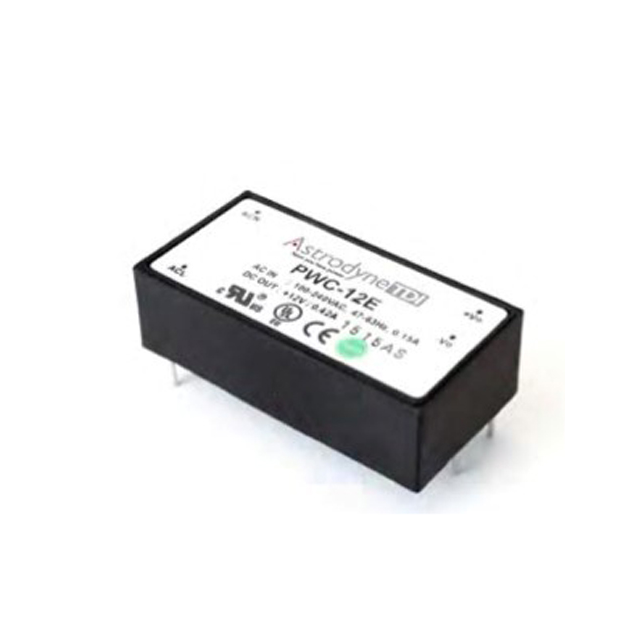

Astrodyne TDI PWC-12E
Images are for reference only
Manufacturer
Manufacturer No
PWC-12E
Availability
In Stock
Package
4-DIP Module
Packaging
Box
Description
AC/DC CONVERTER 12V 5W
Detailed Description
Enclosed AC DC Converters 1 Output 12V 420mA 90 ~ 264 VAC Input
Datasheet
Payment
Delivery
Type
Enclosed
Series
PWC (5W)
Features
Universal Input
Packaging
Box
Efficiency
73%
Applications
ITE (Commercial)
Manufacturer
Astrodyne TDI
Mounting Type
Through Hole
Power (Watts)
5 W
Package / Case
4-DIP Module
Approval Agency
cURus, UL
Line Regulation
±0.5%
Load Regulation
±1%
Voltage - Input
90 ~ 264 VAC
Size / Dimension
2.00" L x 1.00" W x 0.60" H (50.8mm x 25.4mm x 15.2mm)
Number of Outputs
1
Voltage - Output 1
12V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Base Product Number
PWC-12
Operating Temperature
-25°C ~ 65°C (With Derating)
Current - Output (Max)
420mA
| Attribute | Value |
|---|---|
| Type | Enclosed |
| Series | PWC (5W) |
| Features | Universal Input |
| Packaging | Box |
| Efficiency | 73% |
| Applications | ITE (Commercial) |
| Manufacturer | Astrodyne TDI |
| Mounting Type | Through Hole |
| Power (Watts) | 5 W |
| Package / Case | 4-DIP Module |
| Approval Agency | cURus, UL |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Voltage - Input | 90 ~ 264 VAC |
| Size / Dimension | 2.00" L x 1.00" W x 0.60" H (50.8mm x 25.4mm x 15.2mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Base Product Number | PWC-12 |
| Operating Temperature | -25°C ~ 65°C (With Derating) |
| Current - Output (Max) | 420mA |
