Step1: Product
Asahi Kasei Microdevices/AKM AK09970N

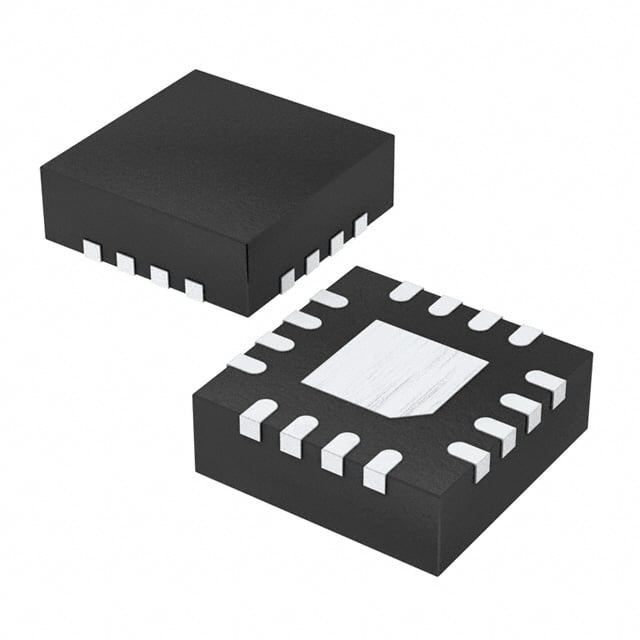

Images are for reference only
Manufacturer
Manufacturer No
AK09970N
Availability
In Stock
Package
16-WFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
SEN HALL EFFECT I2C/SPI 16-QFN
Detailed Description
Hall Effect Sensor X, Y, Z Axis 16-QFN (3x3)
Datasheet
Payment
Delivery
Axis
X, Y, Z
Series
-
Features
Selectable Scale
Bandwidth
-
Packaging
Tape & Reel (TR)
Resolution
16 b
Technology
Hall Effect
Output Type
I2C, SPI
Manufacturer
Asahi Kasei Microdevices/AKM
Mounting Type
Surface Mount
Sensing Range
±39mT
Package / Case
16-WFQFN Exposed Pad
Voltage - Supply
1.7V ~ 3.6V
Base Product Number
AK09970
Operating Temperature
-40°C ~ 85°C
Current - Output (Max)
-
Current - Supply (Max)
-
Supplier Device Package
16-QFN (3x3)
| Attribute | Value |
|---|---|
| Axis | X, Y, Z |
| Series | - |
| Features | Selectable Scale |
| Bandwidth | - |
| Packaging | Tape & Reel (TR) |
| Resolution | 16 b |
| Technology | Hall Effect |
| Output Type | I2C, SPI |
| Manufacturer | Asahi Kasei Microdevices/AKM |
| Mounting Type | Surface Mount |
| Sensing Range | ±39mT |
| Package / Case | 16-WFQFN Exposed Pad |
| Voltage - Supply | 1.7V ~ 3.6V |
| Base Product Number | AK09970 |
| Operating Temperature | -40°C ~ 85°C |
| Current - Output (Max) | - |
| Current - Supply (Max) | - |
| Supplier Device Package | 16-QFN (3x3) |
