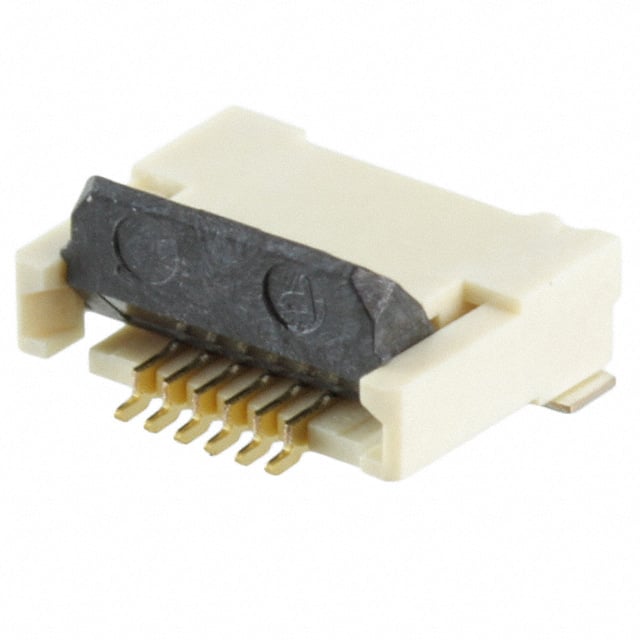

Aratas America LLC XF2M-0615-1A
Images are for reference only
Manufacturer
Manufacturer No
XF2M-0615-1A
Quantity
4,753
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FPC 6POS 0.5MM R/A
Detailed Description
6 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.020" (0.50mm)
Series
XF2M
Features
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Aratas America LLC
Housing Color
Natural
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Rotary Lock, Backlock
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material
Liquid Crystal Polymer (LCP), Halogen Free
FFC, FCB Thickness
0.30mm
Height Above Board
0.083" (2.10mm)
Base Product Number
XF2M
Number of Positions
6
Current Rating (Amps)
0.5A
Operating Temperature
-30°C ~ 85°C
Connector/Contact Type
Contacts, Top and Bottom
Contact Finish Thickness
5.90µin (0.150µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | XF2M |
| Features | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Aratas America LLC |
| Housing Color | Natural |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Rotary Lock, Backlock |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.083" (2.10mm) |
| Base Product Number | XF2M |
| Number of Positions | 6 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -30°C ~ 85°C |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish Thickness | 5.90µin (0.150µm) |
| Material Flammability Rating | UL94 V-0 |
