Step1: Product

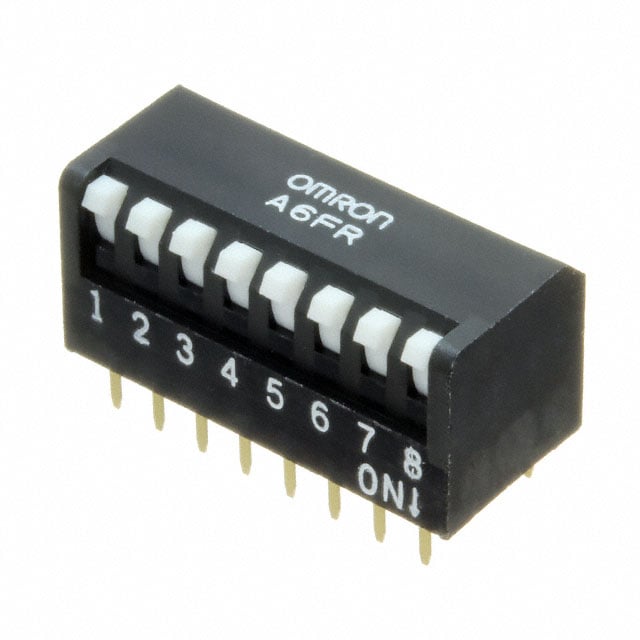

Aratas America LLC A6FR-8101
Images are for reference only
Manufacturer
Manufacturer No
A6FR-8101
Quantity
10
Availability
In Stock
Packaging
Tube
Description
SWITCH PIANO DIP SPST 0.025A 24V
Detailed Description
Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
Datasheet
Payment
Delivery
Pitch
0.100" (2.54mm), Full
Length
0.861" (21.87mm)
Series
A6FR
Circuit
SPST
Features
-
Washable
No
Packaging
Tube
Manufacturer
Aratas America LLC
Actuator Type
Piano
Body Material
-
Mounting Type
Through Hole, Right Angle
Actuator Level
Flush, Recessed
Contact Finish
-
Voltage Rating
24VDC
Electrical Life
1,000 Cycles
Mechanical Life
1,000 Cycles
Contact Material
-
Termination Style
PC Pin
Height Above Board
0.402" (10.20mm)
Base Product Number
A6FR
Number of Positions
8
Current Rating (Amps)
25mA
Operating Temperature
-20°C ~ 70°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.861" (21.87mm) |
| Series | A6FR |
| Circuit | SPST |
| Features | - |
| Washable | No |
| Packaging | Tube |
| Manufacturer | Aratas America LLC |
| Actuator Type | Piano |
| Body Material | - |
| Mounting Type | Through Hole, Right Angle |
| Actuator Level | Flush, Recessed |
| Contact Finish | - |
| Voltage Rating | 24VDC |
| Electrical Life | 1,000 Cycles |
| Mechanical Life | 1,000 Cycles |
| Contact Material | - |
| Termination Style | PC Pin |
| Height Above Board | 0.402" (10.20mm) |
| Base Product Number | A6FR |
| Number of Positions | 8 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -20°C ~ 70°C |
