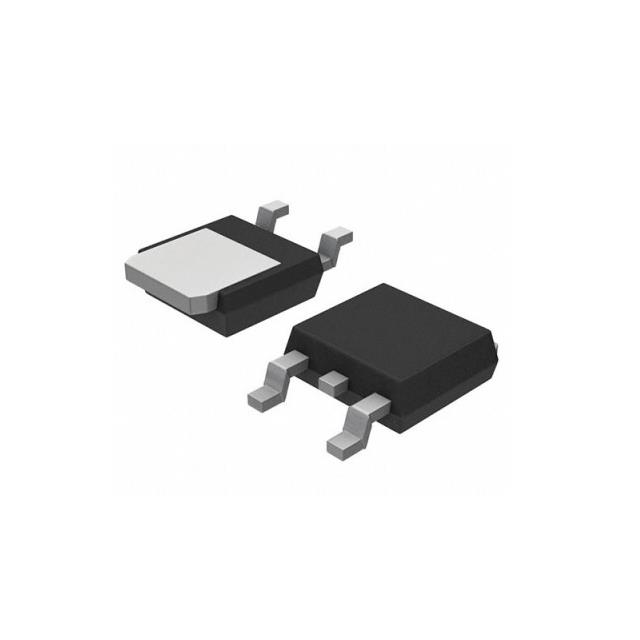

Analog Power Inc. AMD560C
Images are for reference only
Manufacturer
Manufacturer No
AMD560C
Package
TO-252-5, DPAK (4 Leads + Tab), TO-252AD
Packaging
Tape & Reel (TR)
Description
MOSFET N/P-CH 60V 35A TO252-4
Detailed Description
Mosfet Array 60V 35A (Tc), 20A (Tc) 50W (Tc) Surface Mount TO-252-4
Datasheet
Payment
Delivery
Grade
-
Series
-
Packaging
Tape & Reel (TR)
Technology
MOSFET (Metal Oxide)
FET Feature
-
Power - Max
50W (Tc)
Manufacturer
Analog Power Inc.
Configuration
N and P-Channel
Mounting Type
Surface Mount
Qualification
-
Package / Case
TO-252-5, DPAK (4 Leads + Tab), TO-252AD
Vgs(th) (Max) @ Id
1V @ 250µA
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
24mOhm @ 20A, 10V, 85mOhm @ 10A, 10V
Supplier Device Package
TO-252-4
Gate Charge (Qg) (Max) @ Vgs
9nC @ 4.5V, 10nC @ 4.5V
Drain to Source Voltage (Vdss)
60V
Input Capacitance (Ciss) (Max) @ Vds
1422pF @ 15V, 1143pF @ 15V
Current - Continuous Drain (Id) @ 25°C
35A (Tc), 20A (Tc)
| Attribute | Value |
|---|---|
| Grade | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Power - Max | 50W (Tc) |
| Manufacturer | Analog Power Inc. |
| Configuration | N and P-Channel |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 20A, 10V, 85mOhm @ 10A, 10V |
| Supplier Device Package | TO-252-4 |
| Gate Charge (Qg) (Max) @ Vgs | 9nC @ 4.5V, 10nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 60V |
| Input Capacitance (Ciss) (Max) @ Vds | 1422pF @ 15V, 1143pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc), 20A (Tc) |
