Step1: Product

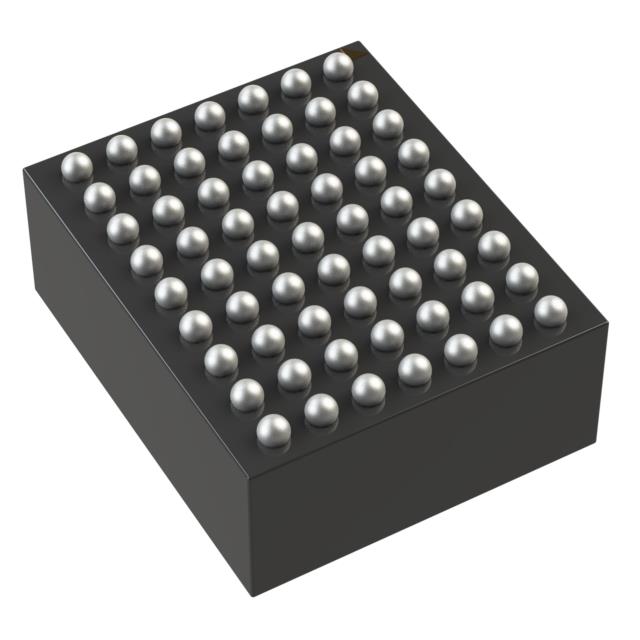

Analog Devices Inc. LTM4705IY#PBF
Images are for reference only
Manufacturer
Manufacturer No
LTM4705IY#PBF
Date Code
22+
Quantity
100
Availability
In Stock
Package
63-BFBGA Module
Packaging
Tray
Description
20V, DUAL 5A UMODULE REGULATOR
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 10A 3.1V - 20V Input
Datasheet
Payment
Delivery
Mfr
Analog Devices Inc.
Type
Non-Isolated PoL Module
Series
-
Features
Adjustable Output
Packaging
Tray
Efficiency
-
Applications
ITE (Commercial)
Mounting Type
Surface Mount
Package / Case
63-BFBGA Module
Approval Agency
-
Standard Number
-
Control Features
-
Size / Dimension
0.30" L x 0.25" W x 0.13" H (7.5mm x 6.3mm x 3.2mm)
Number of Outputs
1
Voltage - Output 1
0.6 ~ 5.5V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Base Product Number
LTM4705
Operating Temperature
-40°C ~ 125°C
Voltage - Input (Max)
20V
Voltage - Input (Min)
3.1V
Current - Output (Max)
10A
Supplier Device Package
63-BGA (6.25x7.5)
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc. |
| Type | Non-Isolated PoL Module |
| Series | - |
| Features | Adjustable Output |
| Packaging | Tray |
| Efficiency | - |
| Applications | ITE (Commercial) |
| Mounting Type | Surface Mount |
| Package / Case | 63-BFBGA Module |
| Approval Agency | - |
| Standard Number | - |
| Control Features | - |
| Size / Dimension | 0.30" L x 0.25" W x 0.13" H (7.5mm x 6.3mm x 3.2mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0.6 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Base Product Number | LTM4705 |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Input (Max) | 20V |
| Voltage - Input (Min) | 3.1V |
| Current - Output (Max) | 10A |
| Supplier Device Package | 63-BGA (6.25x7.5) |
