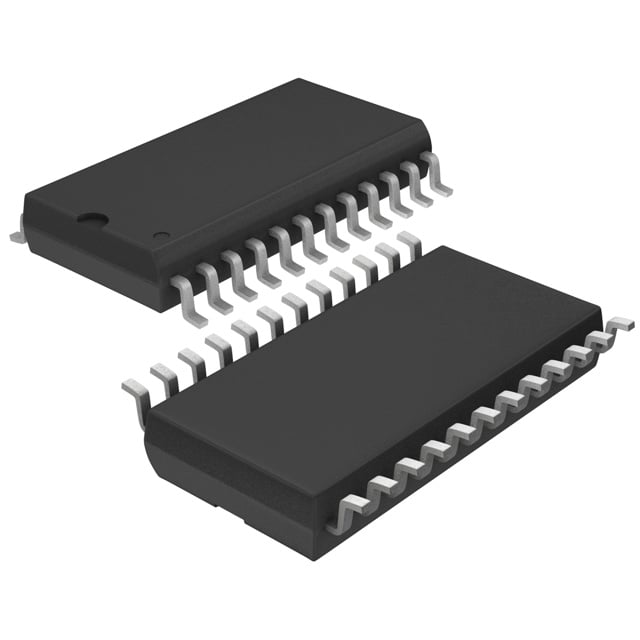

Analog Devices Inc. LT1162ISW
Images are for reference only
Manufacturer
Manufacturer No
LT1162ISW
Package
24-SOIC (0.295", 7.50mm Width)
Packaging
Tube
Description
IC GATE DRVR HALF-BRIDGE 24SOIC
Detailed Description
Half-Bridge Gate Driver IC Non-Inverting 24-SOIC
Datasheet
Payment
Delivery
Series
-
Gate Type
MOSFET (N-Channel)
Packaging
Tube
Input Type
Non-Inverting
Channel Type
Independent
Manufacturer
Analog Devices Inc.
Mounting Type
Surface Mount
Package / Case
24-SOIC (0.295", 7.50mm Width)
Voltage - Supply
10V ~ 15V
Number of Drivers
4
Base Product Number
LT1162
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 125°C (TJ)
Rise / Fall Time (Typ)
130ns, 60ns
Supplier Device Package
24-SOIC
Logic Voltage - VIL, VIH
0.8V, 2V
High Side Voltage - Max (Bootstrap)
60 V
Current - Peak Output (Source, Sink)
1.5A, 1.5A
| Attribute | Value |
|---|---|
| Series | - |
| Gate Type | MOSFET (N-Channel) |
| Packaging | Tube |
| Input Type | Non-Inverting |
| Channel Type | Independent |
| Manufacturer | Analog Devices Inc. |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Voltage - Supply | 10V ~ 15V |
| Number of Drivers | 4 |
| Base Product Number | LT1162 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Rise / Fall Time (Typ) | 130ns, 60ns |
| Supplier Device Package | 24-SOIC |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| High Side Voltage - Max (Bootstrap) | 60 V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
