Analog Devices Inc. ADUM3223ARZ-RL7

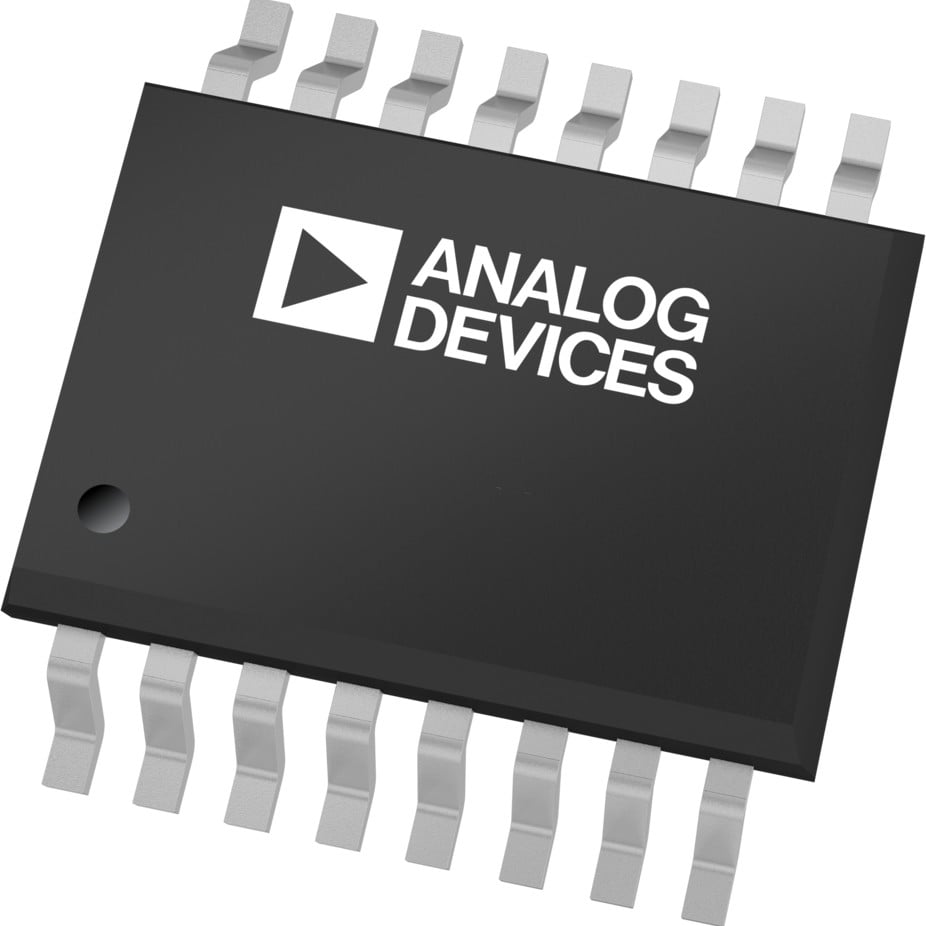

Images are for reference only
Manufacturer
Manufacturer No
ADUM3223ARZ-RL7
Date Code
2204
Quantity
701
Availability
In Stock
Package
16-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
DGTL ISO 3KV 2CH GATE DVR 16SOIC
Detailed Description
4A Gate Driver Magnetic Coupling 3000Vrms 2 Channel 16-SOIC
Datasheet
Payment
Delivery
Mfr
Analog Devices Inc.
Grade
-
Series
iCoupler®
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
Magnetic Coupling
Mounting Type
Surface Mount
Qualification
-
Package / Case
16-SOIC (0.154", 3.90mm Width)
Approval Agency
CSA, UR, VDE
Number of Channels
2
Base Product Number
ADUM3223
Voltage - Isolation
3000Vrms
Current - Peak Output
4A
Operating Temperature
-40°C ~ 125°C
Rise / Fall Time (Typ)
12ns, 12ns
Supplier Device Package
16-SOIC
Voltage - Output Supply
4.5V ~ 18V
Current - Output High, Low
-
Pulse Width Distortion (Max)
-
Voltage - Forward (Vf) (Typ)
-
Propagation Delay tpLH / tpHL (Max)
59ns, 59ns
Common Mode Transient Immunity (Min)
50kV/µs
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc. |
| Grade | - |
| Series | iCoupler® |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Magnetic Coupling |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Approval Agency | CSA, UR, VDE |
| Number of Channels | 2 |
| Base Product Number | ADUM3223 |
| Voltage - Isolation | 3000Vrms |
| Current - Peak Output | 4A |
| Operating Temperature | -40°C ~ 125°C |
| Rise / Fall Time (Typ) | 12ns, 12ns |
| Supplier Device Package | 16-SOIC |
| Voltage - Output Supply | 4.5V ~ 18V |
| Current - Output High, Low | - |
| Pulse Width Distortion (Max) | - |
| Voltage - Forward (Vf) (Typ) | - |
| Propagation Delay tpLH / tpHL (Max) | 59ns, 59ns |
| Common Mode Transient Immunity (Min) | 50kV/µs |
