Analog Devices Inc. ADG714BRUZ

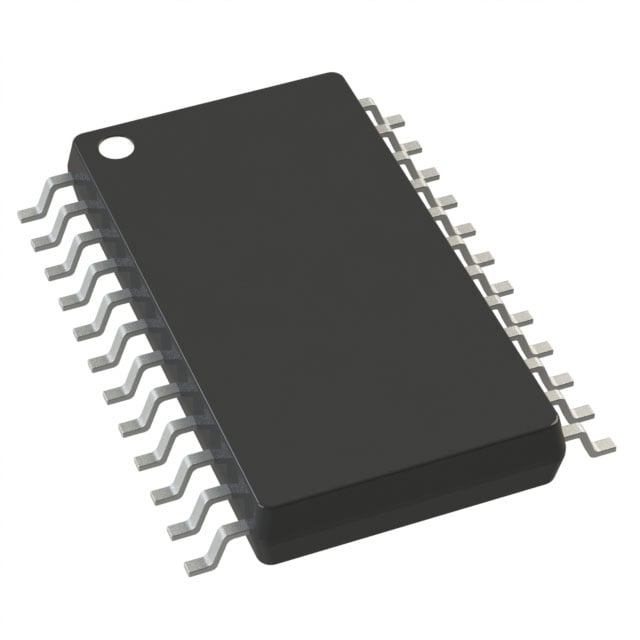

Image is only for reference
| Attribute | Value |
|---|---|
| Series | - |
| Crosstalk | -90dB @ 1MHz |
| Packaging | Tube |
| Manufacturer | Analog Devices Inc. |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 155MHz |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Switch Circuit | SPST - NO |
| Charge Injection | 3pC |
| Number of Circuits | 8 |
| Base Product Number | ADG714 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 24-TSSOP |
| On-State Resistance (Max) | 4.5Ohm |
| Voltage - Supply, Dual (V±) | ±2.5V |
| Switch Time (Ton, Toff) (Max) | 20ns, 8ns (Typ) |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | - |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 11pF |
