Step1: Product

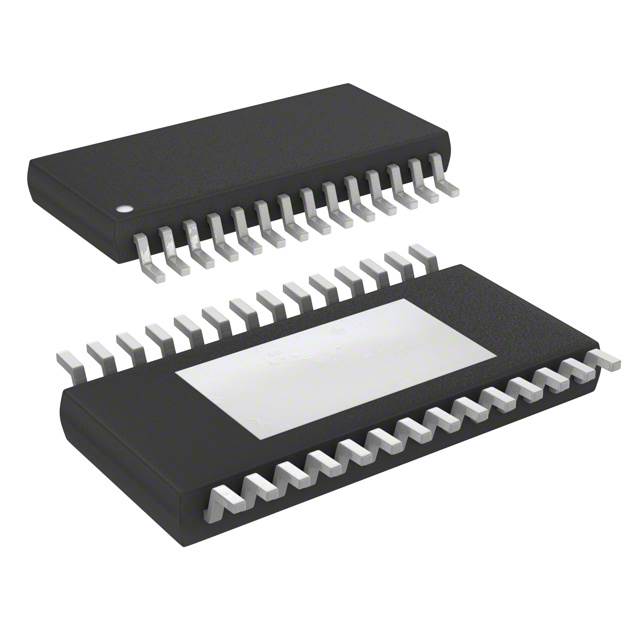

Analog Devices Inc. AD5421BREZ
Images are for reference only
Manufacturer
Manufacturer No
AD5421BREZ
Quantity
47
Availability
In Stock
Package
28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Packaging
Tube
Description
IC DAC 16BIT 28-TSSOP-EP
Detailed Description
16 Bit Digital to Analog Converter 1 28-TSSOP-EP
Datasheet
Payment
Delivery
Series
-
Packaging
Tube
Output Type
Current - Buffered
Architecture
Cyclic Serial
Manufacturer
Analog Devices Inc.
INL/DNL (LSB)
-, ±1 (Max)
Mounting Type
Surface Mount
Settling Time
50µs (Typ)
Data Interface
SPI, DSP
Number of Bits
16
Package / Case
28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Reference Type
External, Internal
Base Product Number
AD5421
Differential Output
No
Operating Temperature
-40°C ~ 105°C
Supplier Device Package
28-TSSOP-EP
Number of D/A Converters
1
Voltage - Supply, Analog
1.71V ~ 5.5V
Voltage - Supply, Digital
3.17V ~ 3.48V
| Attribute | Value |
|---|---|
| Series | - |
| Packaging | Tube |
| Output Type | Current - Buffered |
| Architecture | Cyclic Serial |
| Manufacturer | Analog Devices Inc. |
| INL/DNL (LSB) | -, ±1 (Max) |
| Mounting Type | Surface Mount |
| Settling Time | 50µs (Typ) |
| Data Interface | SPI, DSP |
| Number of Bits | 16 |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Reference Type | External, Internal |
| Base Product Number | AD5421 |
| Differential Output | No |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 28-TSSOP-EP |
| Number of D/A Converters | 1 |
| Voltage - Supply, Analog | 1.71V ~ 5.5V |
| Voltage - Supply, Digital | 3.17V ~ 3.48V |
