Step1: Product
Analog Devices Inc./Maxim Integrated PD60-4H-1278-CANOPEN
Images are for reference only
Manufacturer
Manufacturer No
PD60-4H-1278-CANOPEN
Packaging
Bulk
Description

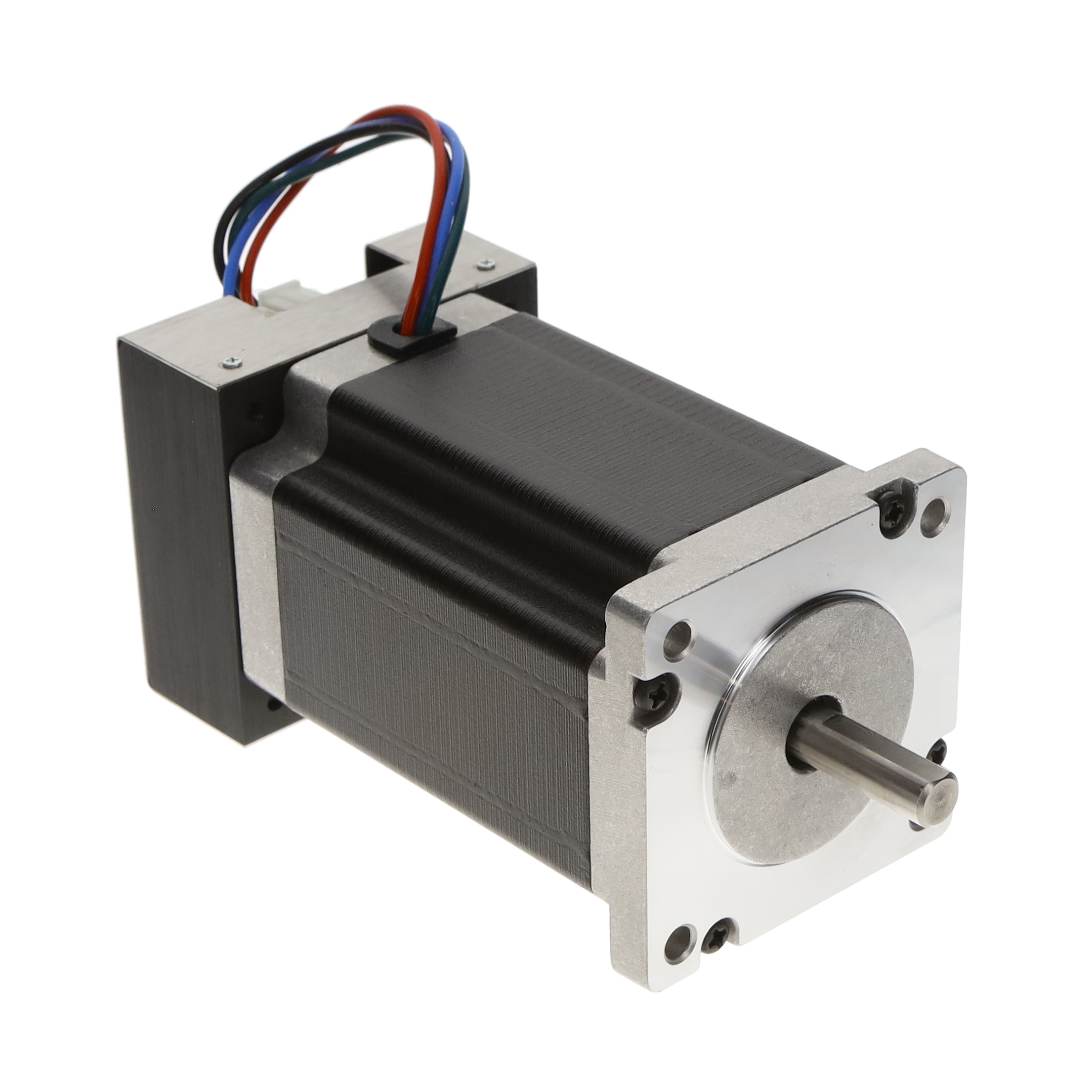

PANDRIVE NEMA24, 48V, 3NM
Detailed Description
Bipolar Stepper Motor Hybrid Frame Size 24 200.0 Step 9 A 2.1VDC
Payment
Delivery
Mfr
Analog Devices Inc./Maxim Integrated
Type
Hybrid
Series
PANdrive™
Accuracy
±5%
Features
Integrated Controller, Flatted Shaft
Coil Type
Bipolar
Packaging
Bulk
Step Angle
1.8°
Rotor Inertia
840gcm²
Approval Agency
-
Coil Resistance
15 Ohms
NEMA Frame Size
24
Voltage - Rated
2.1VDC
Diameter - Shaft
-
Size / Dimension
Square - 3.386" x 3.386" (86.00mm x 86.00mm)
Termination Style
Wire Leads with Connector
Base Product Number
PD60-4
Steps per Revolution
200.0
Current Rating (Amps)
9 A
Mounting Hole Spacing
-
Operating Temperature
-20°C ~ 50°C
Length - Shaft and Bearing
-
Torque - Holding (oz-in / mNm)
424.93 / 3000
| Attribute | Value |
|---|---|
| Mfr | Analog Devices Inc./Maxim Integrated |
| Type | Hybrid |
| Series | PANdrive™ |
| Accuracy | ±5% |
| Features | Integrated Controller, Flatted Shaft |
| Coil Type | Bipolar |
| Packaging | Bulk |
| Step Angle | 1.8° |
| Rotor Inertia | 840gcm² |
| Approval Agency | - |
| Coil Resistance | 15 Ohms |
| NEMA Frame Size | 24 |
| Voltage - Rated | 2.1VDC |
| Diameter - Shaft | - |
| Size / Dimension | Square - 3.386" x 3.386" (86.00mm x 86.00mm) |
| Termination Style | Wire Leads with Connector |
| Base Product Number | PD60-4 |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 9 A |
| Mounting Hole Spacing | - |
| Operating Temperature | -20°C ~ 50°C |
| Length - Shaft and Bearing | - |
| Torque - Holding (oz-in / mNm) | 424.93 / 3000 |
