Step1: Product

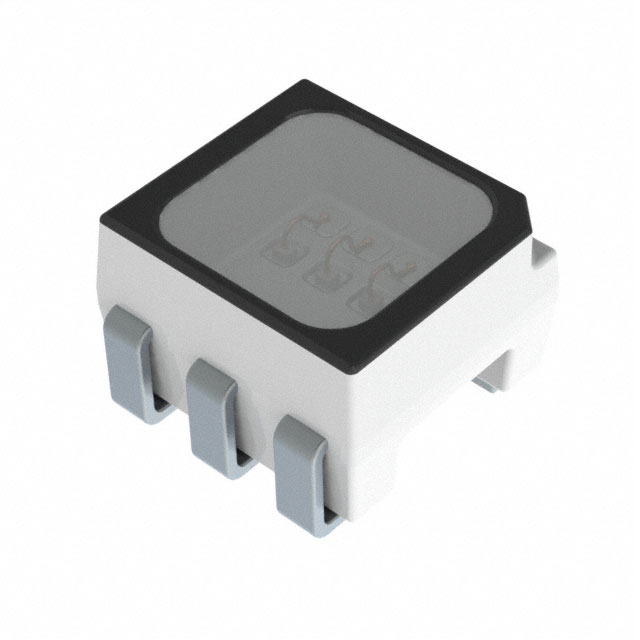

ams-OSRAM USA INC. LRT GFTM-ST7-1+VV9-29-0-A-R33-ZB
Images are for reference only
Manufacturer
Manufacturer No
LRT GFTM-ST7-1+VV9-29-0-A-R33-ZB
Date Code
1743
Quantity
7,743
Availability
In Stock
Package
6-SMD, J-Lead
Packaging
Tape & Reel (TR)
Description
LED GREEN/RED DIFFUSED 6PLCC SMD
Detailed Description
Green, Red 528nm Green, 625nm Red LED Indication - Discrete 3.2V Green, 2.05V Red 6-SMD, J-Lead
Datasheet
Payment
Delivery
Mfr
ams-OSRAM USA INC.
Color
Green, Red
Series
MULTILED® Black Surface
Features
-
Lens Size
2.80mm x 2.50mm
Packaging
Tape & Reel (TR)
Lens Color
-
Lens Style
Rectangle with Flat Top
Height (Max)
2.00mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA Green, 10mA Red
Package / Case
6-SMD, J-Lead
Size / Dimension
3.30mm L x 3.00mm W
Lens Transparency
Diffused
Wavelength - Peak
523nm Green, 632nm Red
Millicandela Rating
1150mcd Green, 370mcd Red
Wavelength - Dominant
528nm Green, 625nm Red
Supplier Device Package
6-PLCC
Voltage - Forward (Vf) (Typ)
3.2V Green, 2.05V Red
| Attribute | Value |
|---|---|
| Mfr | ams-OSRAM USA INC. |
| Color | Green, Red |
| Series | MULTILED® Black Surface |
| Features | - |
| Lens Size | 2.80mm x 2.50mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | - |
| Lens Style | Rectangle with Flat Top |
| Height (Max) | 2.00mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA Green, 10mA Red |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension | 3.30mm L x 3.00mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 523nm Green, 632nm Red |
| Millicandela Rating | 1150mcd Green, 370mcd Red |
| Wavelength - Dominant | 528nm Green, 625nm Red |
| Supplier Device Package | 6-PLCC |
| Voltage - Forward (Vf) (Typ) | 3.2V Green, 2.05V Red |
