Step1: Product

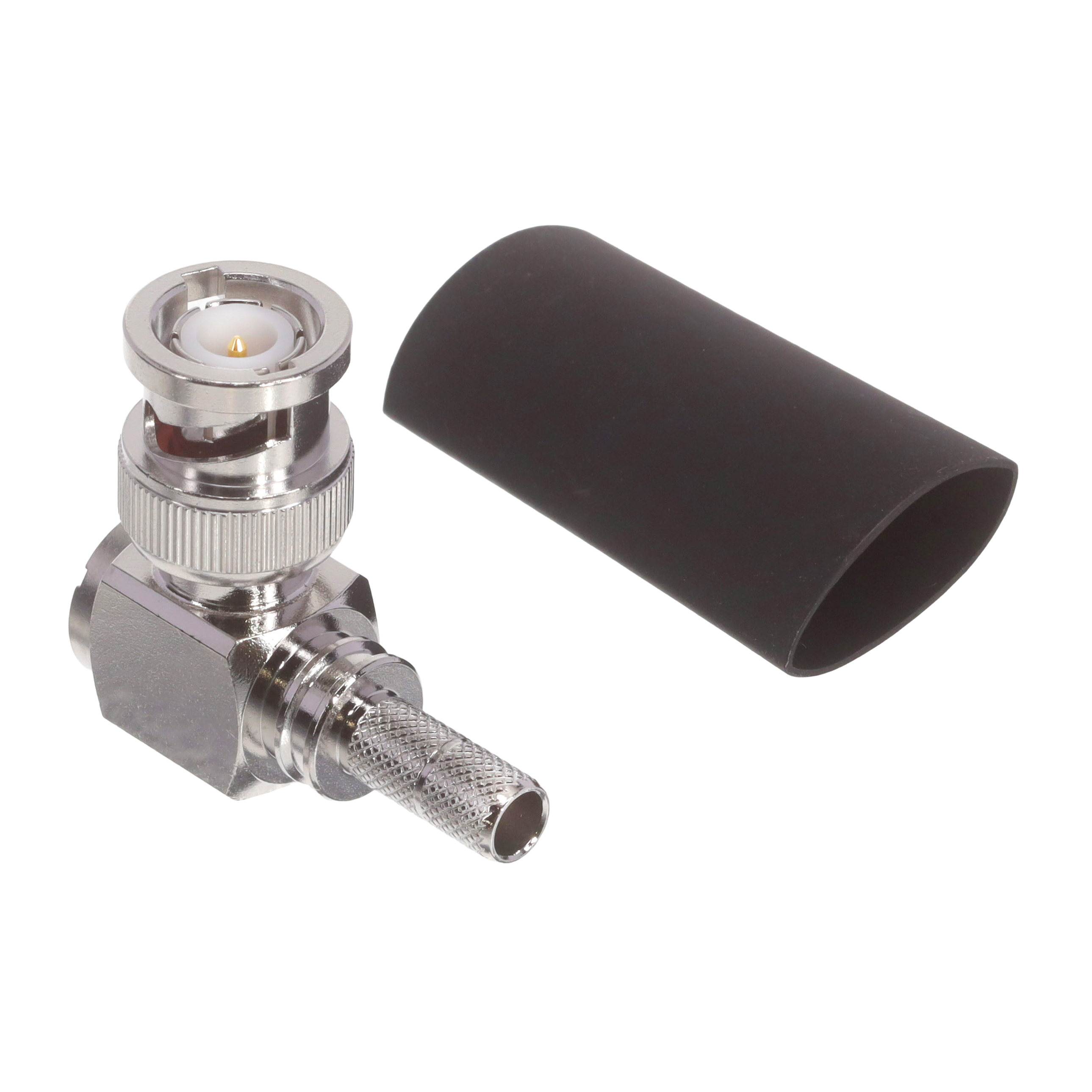

Amphenol Times Microwave Systems EZ-240-BM-RA-X
Images are for reference only
Manufacturer
Manufacturer No
EZ-240-BM-RA-X
Packaging
Bag
Description
BNC-MALE (PLUG) CRIMP RIGHT ANGL
Detailed Description
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Push On
Datasheet
Payment
Delivery
Mfr
Amphenol Times Microwave Systems
Series
EZ
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bag
Body Finish
White Bronze
Cable Group
LMR-240
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug, Male Pin
Fastening Type
Bayonet Lock
Insertion Loss
-
Voltage Rating
500 V
Connector Style
BNC
Frequency - Max
6 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Crimp
Base Product Number
EZ-240
Contact Termination
Push On
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 155°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Amphenol Times Microwave Systems |
| Series | EZ |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | White Bronze |
| Cable Group | LMR-240 |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug, Male Pin |
| Fastening Type | Bayonet Lock |
| Insertion Loss | - |
| Voltage Rating | 500 V |
| Connector Style | BNC |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Crimp |
| Base Product Number | EZ-240 |
| Contact Termination | Push On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 155°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
