Step1: Product

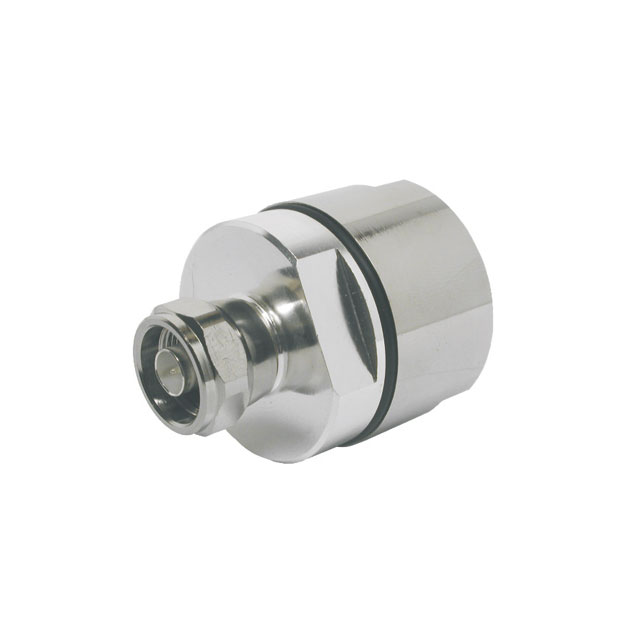

Amphenol Times Microwave Systems EZ-1200-NFC-PL
Images are for reference only
Manufacturer
Manufacturer No
EZ-1200-NFC-PL
Packaging
Bag
Description
N-FEMALE (JACK) CLAMP CONNECTOR
Detailed Description
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Press-Fit
Datasheet
Payment
Delivery
Mfr
Amphenol Times Microwave Systems
Series
EZ
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bag
Body Finish
Silver
Cable Group
LMR-1200
Body Material
Brass
Housing Color
Silver
Mating Cycles
-
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Insertion Loss
-
Voltage Rating
1000 V
Connector Style
N Type
Frequency - Max
3 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Clamp
Base Product Number
EZ-1200
Contact Termination
Press-Fit
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-5°C ~ 75°C
Center Contact Plating
Silver
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Amphenol Times Microwave Systems |
| Series | EZ |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Silver |
| Cable Group | LMR-1200 |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Insertion Loss | - |
| Voltage Rating | 1000 V |
| Connector Style | N Type |
| Frequency - Max | 3 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Clamp |
| Base Product Number | EZ-1200 |
| Contact Termination | Press-Fit |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -5°C ~ 75°C |
| Center Contact Plating | Silver |
| Center Contact Material | Brass |
